Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT GEARCASE
by
DRIVE TRAIN, PRIMARY CLUTCH
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
ASM-GEARCASE FRONT
1333105
1337614
Not Available
2
OUTPUT COVER
3235168
3236681
$955,49 Unit Price incl. VAT
3
HUB ASSEMBLY KIT
3235169
3236683
$782,24 Unit Price incl. VAT
4
FASTENER KIT
3235170
$34,64 Unit Price incl. VAT
5
SEAL REPAIR KIT
3235171
3236682
$167,99 Unit Price incl. VAT
6
ARMATURE PLATE
3234407
$209,99 Unit Price incl. VAT
7
PINION BEARING
3235174
$135,44 Unit Price incl. VAT
8
ROLLER KIT
3234393
9999999
Not Available
9
ASM-ROLL CAGE;AL(T)
3235262
$1 065,74 Unit Price incl. VAT
10
GEARCASE ASSEMBLY KIT
3235440
9999999
Not Available
11
DRAIN PLUG
2203738
$68,24 Unit Price incl. VAT
12
FILL PLUG
2203739
$83,99 Unit Price incl. VAT
13
RING AND PINION KIT
3235441
3239381
$1 186,49 Unit Price incl. VAT
14
SPRING KIT
3234908
$173,24 Unit Price incl. VAT

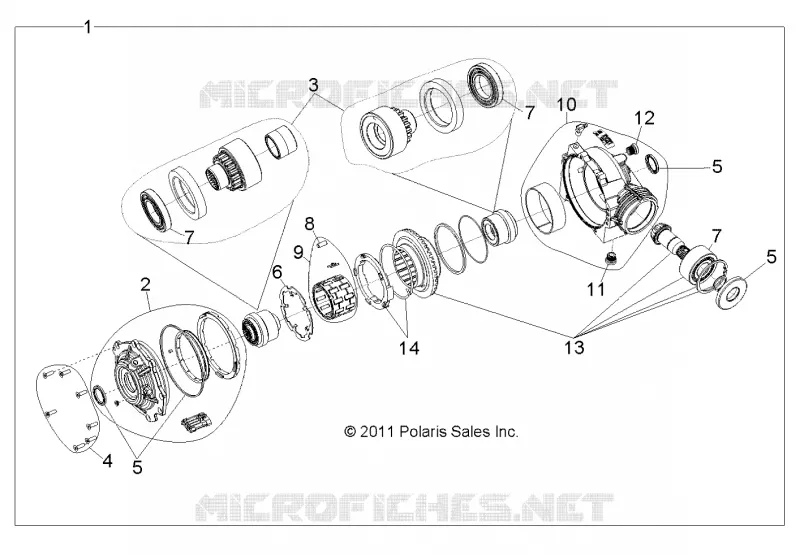

Find the detailed DRIVE TRAIN, FRONT GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
