REAR TORQUE ARM for POLARIS 900 SWITCHBACK from 2006

REAR TORQUE ARM

1

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

2

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

3

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

4

SHAFT; .75 X 15.404

5133987

$104,99 Unit Price incl. VAT

5

TRAIL ARM WELD; RIGHT; NARROW; GS BLK

1541963067

Not Available

5

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

6

FLEXLOC NUT

7542411

$6,29 Unit Price incl. VAT

7

SCREW

7512410

7515540

$9,44 Unit Price incl. VAT

8

NUT-5/16-24 NYLOK GR8 Y

7547217

$7,34 Unit Price incl. VAT

9

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

10

SHAFT-.689X.334X5.220 ANNODIZE

5333997

9999999

Not Available

11

SCREW-5/16-24X6.00 HX/CP GR5-Y

7517908

$18,89 Unit Price incl. VAT

12

TORSION SPRING SLEEVE

5434337

$13,64 Unit Price incl. VAT

13

SPRING TORSION .359/77 RH BLK

7041630067

Not Available

13

TORISON SPRING RIGHT .347/77 DEG GS BLK

7041628067

Not Available

13

SPRING TORSION .359/77 LH BLK

7041629067

Not Available

13

SPRING-TORS.375SQ/77 ;RH;BLK

7041943067

Not Available

13

SPRING-TORS.375SQ/77 LHBLK

7041942067

Not Available

13

TORSION SPRING; LEFT; MEDIUM GLOSS BLACK

7041627067

Not Available

14

BEARING

3514303

$20,99 Unit Price incl. VAT

14

ASM-WHEEL BOGIE LWT PLAIN 5.62

1590328

$99,74 Unit Price incl. VAT

14

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

15

SCR-10-24-3/8 SOC/SET-Y

7518262

$7,34 Unit Price incl. VAT

16

SPACER; NYLON; .985 X 1.285 X .868

5135424

$34,64 Unit Price incl. VAT

17

PUSH ON CLIP

7080394

$4,19 Unit Price incl. VAT

18

ROLLER SPRING ADJ SQUARE

5432983

$19,94 Unit Price incl. VAT

19

SCREW

7515415

9999999

Not Available

20

BUSHING-.568X.688X1.36 VESPEL

5435722

9999999

Not Available

20

SHOCK ROD ASSEMBLY

1542170

$178,49 Unit Price incl. VAT

20

VESPEL BUSHING; .568 X .688 X .92

5435723

9999999

Not Available

21

SCR-3/8-24X4.00 HXCP-GR5-Y

7518263

$7,34 Unit Price incl. VAT

22

WAVE SPRING WASHER

7555795

$2,09 Unit Price incl. VAT

23

BUSHING .385 X .560 X .967

5135043

$11,54 Unit Price incl. VAT

24

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

25

SLEEVE .385 X .560 X 1.24

5333905

$27,29 Unit Price incl. VAT

26

SHOCK-R/T IFP COMP ADJ FOX

7043143

9999999

Not Available

27

BUSHING

5010422

$18,89 Unit Price incl. VAT

28

BUSHING .385 X .550 X 1.39

5134601

$27,29 Unit Price incl. VAT

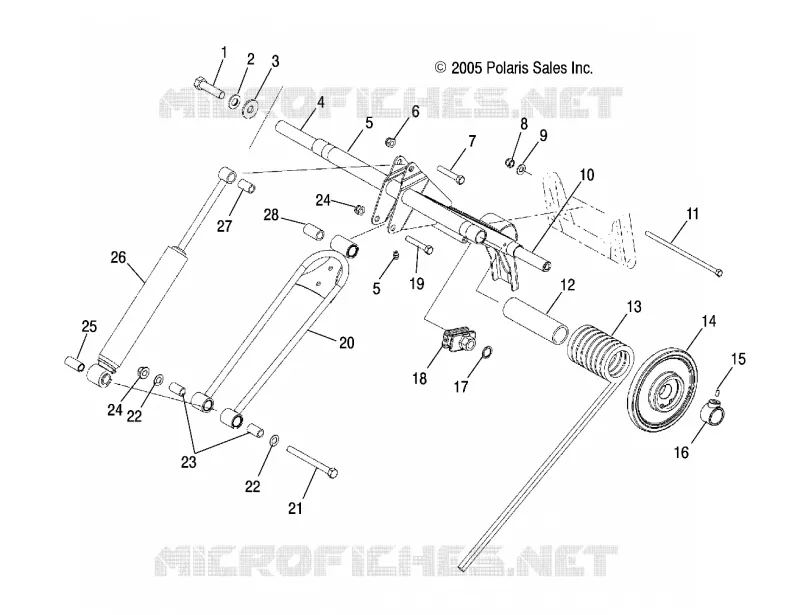

Find the detailed REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
