1
Engine displacement
900
2
Year
2006
3
Trim
900 SWITCHBACK
4
Parts Catalog
HANDLEBAR
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION
by
SUSPENSION
HANDLEBAR
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
1
GRIP-HANDLEBAR BLK
5435394070
Not Available
2
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
3
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
4
THROTTLE LEVER; 35.5 MM
5432970
$52,49 Unit Price incl. VAT
4
HEATER LEVER ASSEMBLY; HI/LO; 35.5 MM
2010171
$157,49 Unit Price incl. VAT
5
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
6
ADAPTER-BLOCK THROTTLE
5433345
9999999
Not Available
7
HANDLE BAR;BLK
1821463067
Not Available
8
SCREW
7517238
$9,44 Unit Price incl. VAT
9
COVER-HANDLEBAR BLK
5434990070
Not Available
10
STUD CAP 5/16-18X2W/THRU HOLE
7517672
9999999
Not Available
10
BAR-MOUNTAIN BLK
5243396070
Not Available
11
NUT5/16-18 HX JAM
7547107
9999999
Not Available
12
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT
13
SLIDE-HANDLEBAR COVERBLK
5434959070
Not Available
14
NYLON DART CLIP
4010287
$7,34 Unit Price incl. VAT
15
HEATER-GRIP LO/MED/HI SHORT
2461239
9999999
Not Available
16
HANDLE BAR HOOK 45 ;BLK
1253274070
Not Available
17
SCR-SOCKET HEAD;SS5/16-18X3.00
7517834
$13,64 Unit Price incl. VAT
18
BUTTON SWITCH HI/LO LH CONTROL
5433291
5438874
$52,49 Unit Price incl. VAT
19
ASM-CONTROL LH MFG
2010237
2010370
$152,24 Unit Price incl. VAT
20
SCREW 1.50
7517566
$7,34 Unit Price incl. VAT
21
SCREW 1.12
7512078
$2,09 Unit Price incl. VAT
22
SCREW .75
7517441
$4,19 Unit Price incl. VAT
23
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
24
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
25
THROTTLE CABLE
7081154
$120,74 Unit Price incl. VAT
26
SCREW
7511848
$7,34 Unit Price incl. VAT
27
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
28
WASHER (10)
7555727
9999999
Not Available
29
SCREW SET
7512465
$7,34 Unit Price incl. VAT
30
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
31
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
32
WASHER
7555730
$7,34 Unit Price incl. VAT

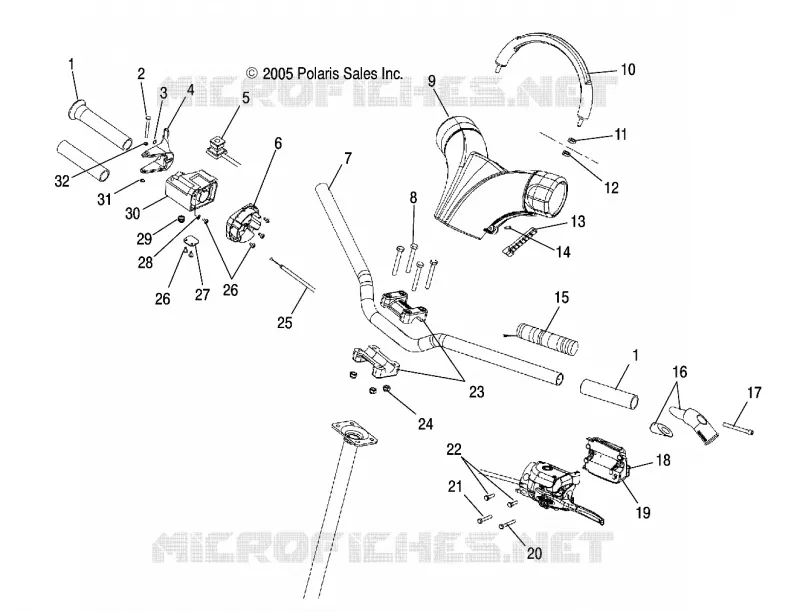

Find the detailed HANDLEBAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
