SUSPENSION, REAR TORQUE ARM for POLARIS 550 INDY ADVENTURE 144 from 2022

REFERENCE, OWNERS MANUAL AND TOOL KIT

REAR SUSPENSION AND TRACK

SUSPENSION, REAR TORQUE ARM

1

SCR-HH M10X40 10.9 ZPC P80

7519223

9999999

Not Available

2

WSHR-M10 SPRING LOC ZPC

7556558

$4,19 Unit Price incl. VAT

3

WSHR-M10.5X25X2.4 ZPC

7556559

$6,29 Unit Price incl. VAT

4

SPACER; NYLON; .985 X 1.285 X .868

5135424

$34,64 Unit Price incl. VAT

4

SCR-10-24-3/8 SOC/SET-Y

7518262

$7,34 Unit Price incl. VAT

5

WAVE WASHER

7571605

$11,54 Unit Price incl. VAT

6

BEARING

3514303

$20,99 Unit Price incl. VAT

6

ASM-WHEEL BOGIE LWT PLAIN 5.62

1590328

$99,74 Unit Price incl. VAT

6

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

7

HOLLOW SHAFT; 20.32 X 391.41

5138059

$115,49 Unit Price incl. VAT

8

TRAILING ARM WELD REAR NARROW BLACK RMK

1543150329

Not Available

9

HEX NUT; 8 MM X 1.25 MM

7547480

$4,19 Unit Price incl. VAT

10

BUSHING M8 X 17.5 X 30

5137230

$6,29 Unit Price incl. VAT

11

HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM

7519097

$3,14 Unit Price incl. VAT

12

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

13

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

14

SCR-HXFL-M8X1.25X150 8.8 ZOD

7519200

$17,84 Unit Price incl. VAT

15

SHAFT 17.37 X 8.45 X 132.59

5337198

$52,49 Unit Price incl. VAT

16

SHOCK ROD; BLACK

1543228329

Not Available

17

SHOCK ROD BUSHING

5138677

$27,29 Unit Price incl. VAT

18

SCR-HXFL-M10X1.5X140 8.8 ZOD

7519041

$19,94 Unit Price incl. VAT

19

NUT-HH M10X1.5 NYLOC ZOD

7547442

$7,34 Unit Price incl. VAT

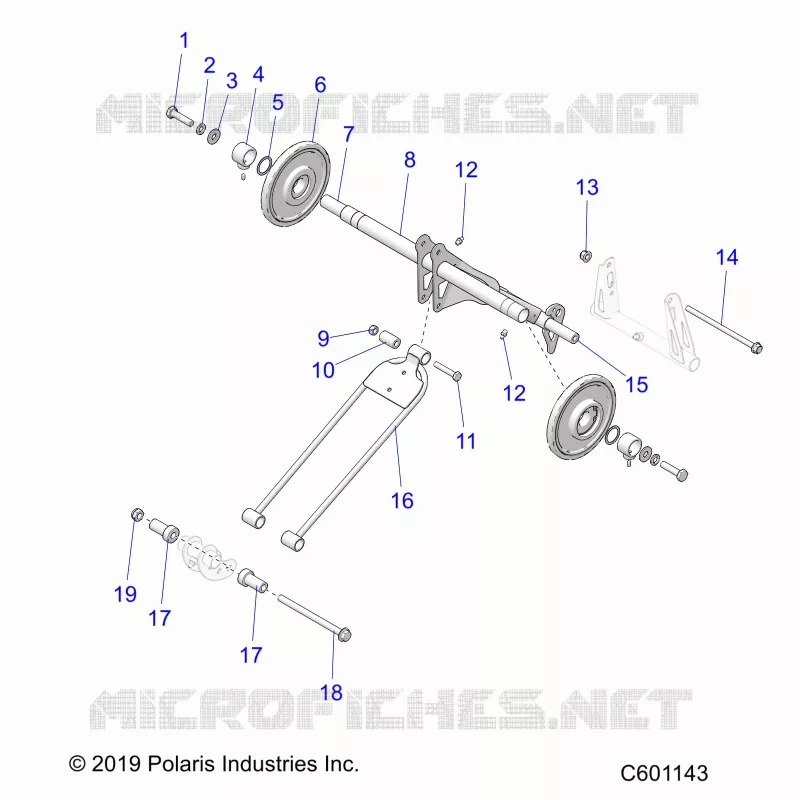

Find the detailed SUSPENSION, REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
