CHASSIS, CHASSIS ASM., AND FOOTWELL ASM., LH/RH for POLARIS 750 FS WIDETRAK IQ from 2010

CHASSIS, CHASSIS ASM., AND FOOTWELL ASM., LH/RH

1

MOUNT-PAD ROLLOVER RH

5252190

9999999

Not Available

1

MOUNT-PAD ROLLOVER LH

5251825

9999999

Not Available

2

RIVET

7661637

$2,09 Unit Price incl. VAT

3

WELD-FOOTREST SUPPORT;LH;BLK

1016311329

Not Available

3

WELD-FOOTREST SUPPORTRHBLK

1016312329

Not Available

4

PLATE; BACKER; RH

5252251

9999999

Not Available

5

FOOTREST-UPPER LH

5251823

9999999

Not Available

5

FOOTREST-UPPER RH

5251824

9999999

Not Available

6

FOOTREST-LOWER RH

5251822

9999999

Not Available

6

FOOTREST-LOWER LH

5251821

9999999

Not Available

7

MOUNT-CLUTCH GUARD

5252093

9999999

Not Available

8

ASM-CHASSIS FS WIDE NAT

1017110309

Not Available

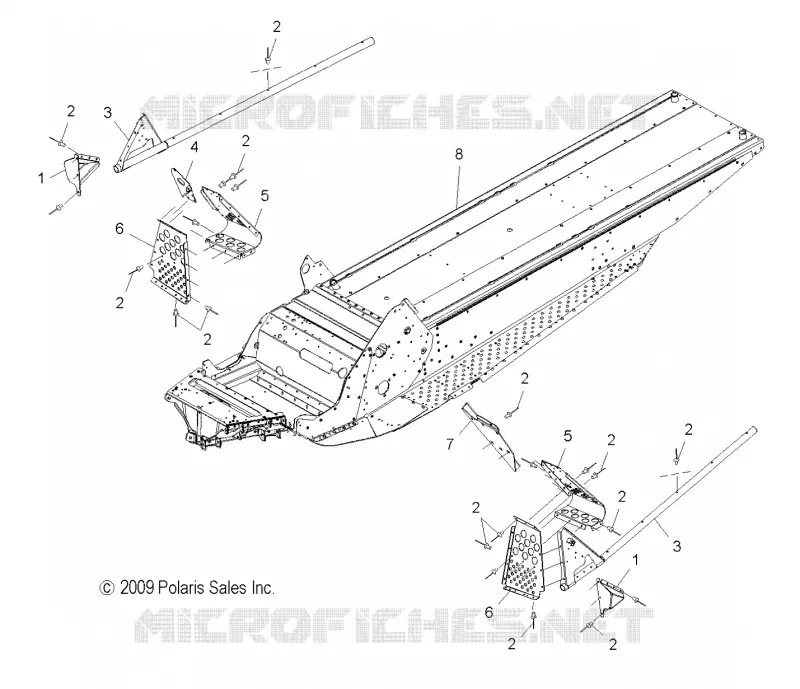

Find the detailed CHASSIS, CHASSIS ASM., AND FOOTWELL ASM., LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
