SEAT AND BASE for POLARIS RANGER 1000 DIESEL EU from 2015

SEAT AND BASE

1

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

2

BOLT HEAD CAP

5450708

9999999

Not Available

3

DRIVER SEATBELT BUCKLE; 9.6

2635223

$115,49 Unit Price incl. VAT

4

PASSENGER SEATBELT BUCKLE;

2635235

$125,99 Unit Price incl. VAT

5

SEATBELT WASHER; RUBBER

5813829

$2,09 Unit Price incl. VAT

6

GROMMET

5439179

$12,59 Unit Price incl. VAT

7

SEAT BELT ASSEMBLY

2635118

2638785

$467,24 Unit Price incl. VAT

8

HEX FLANGE SCREW 12MM X 1.75MM 14MM X9MM

7519770

$8,39 Unit Price incl. VAT

9

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

10

SEAT BELT ASSEMBLY CENTER 3 POINT

2635052

2638784

$330,74 Unit Price incl. VAT

11

ASM. SEAT BOTTOM 60

2684965

Not Available

12

ASM. SEAT BOTTOM 40

2684966

Not Available

13

ASM. SEAT 3 PASSENGER BACK

2685653

Not Available

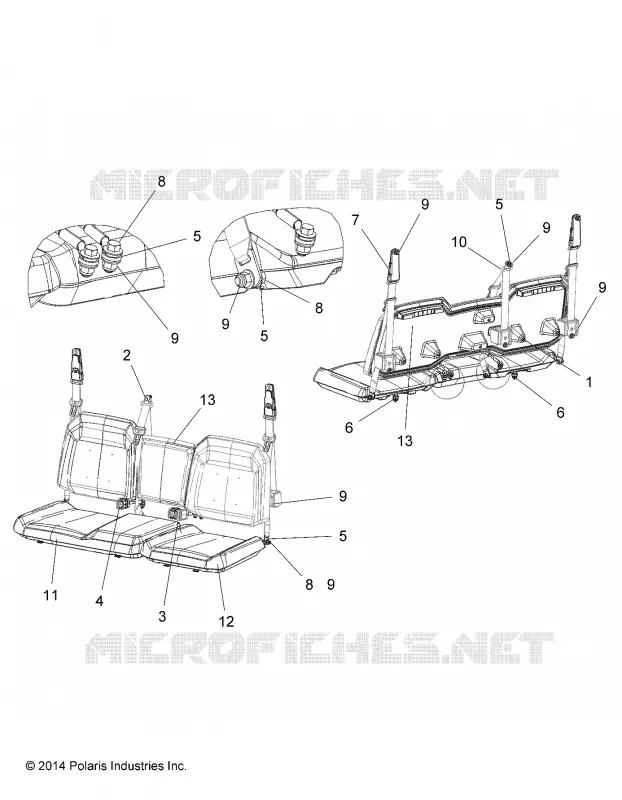

Find the detailed SEAT AND BASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
