1
Engine displacement
autre
2
Year
2016
3
Trim
L16U2NAGFA/MA M1400 GAS [L16U2NAGFA/MA] - R09
4
Parts Catalog
ENGINE, EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, CYLINDER HEAD
by
ENGINE, STATOR COVER AND FLYWHEEL
ENGINE, EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
ASM-SILENCER
1262446
1263595
$509,24 Unit Price incl. VAT
2
MUFFLER TIP SPARK ARRESTOR
1262239
$89,24 Unit Price incl. VAT
3
SHIELD-SILENCER
5258754
$115,49 Unit Price incl. VAT
4
SCREW
7515197
$2,09 Unit Price incl. VAT
5
SCR-3/8-16X3-1/4 THIN HXHD TAP
7518368
9999999
Not Available
6
NUT
7547120
$9,44 Unit Price incl. VAT
7
HEADPIPE ASSEMBLY
1262513
9999999
Not Available
8
BUSHING
5010192
$12,59 Unit Price incl. VAT
9
EXHAUST SEAL
5256385
$52,49 Unit Price incl. VAT
10
EXHAUST SEALING GASKET; 43.20
5256452
$10,49 Unit Price incl. VAT
11
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
12
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
13
SPRING
7041789
$16,79 Unit Price incl. VAT
14
SCR-CAR M8X1.25 40 8.8 ZOD
7519305
9999999
Not Available
15
HEX HEAD NUT; 8 MM
7547076
$4,19 Unit Price incl. VAT
16
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
17
WASHER
7555716
$3,14 Unit Price incl. VAT
18
LOCK WASHER
7556111
$3,14 Unit Price incl. VAT

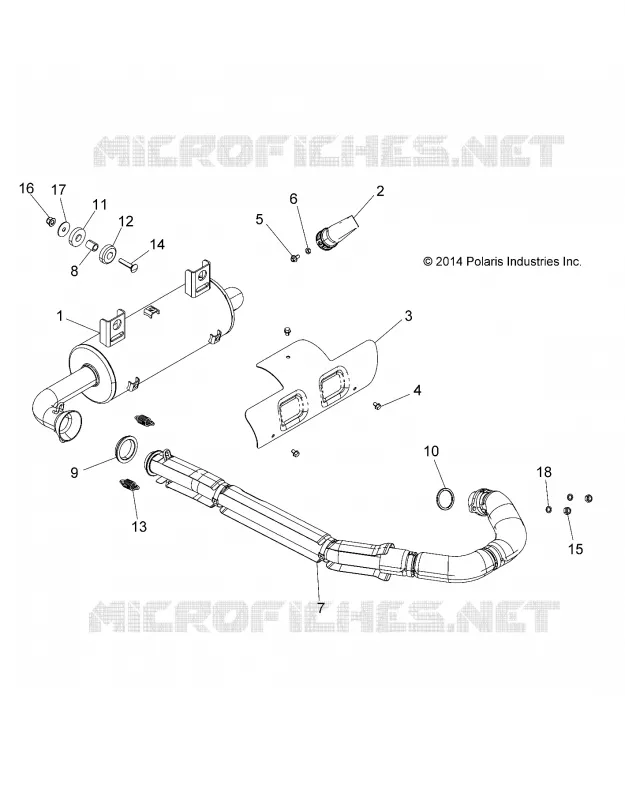

Find the detailed ENGINE, EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
