1
Engine displacement
325
2
Year
2002
3
Trim
MAGNUM 325 4X4 - A02CD32AB
4
Parts Catalog
FRONT BRAKE
5
Parts Diagram
Parts Catalog
REAR BRAKE
by
DECALS
FRONT BRAKE
-
CALIPER BRAKE ASM RH 1.187 7
1910548
9999999
Not Available
-
CALIPER BRAKEASM LH1.1877"
1910547
9999999
Not Available
1
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
2
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
3
BRAKE BOOT KIT; FRONT
1930642
$20,99 Unit Price incl. VAT
3
CALIPER-BRAKE RH 1-3/16(MACH)
5133408
9990005
Not Available
3
CALIPER-BRAKE LH 1-3/16 (MACH)
5133407
9990005
Not Available
4
BOOT; PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
5
BOOT; BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
6
PISTON AND SEAL KIT
1930665
$104,99 Unit Price incl. VAT
7
SQUARE MOLDED RING; .094
5410779
$19,94 Unit Price incl. VAT
8
SQUARE MOLDED RING; .103 X .134
5410780
$19,94 Unit Price incl. VAT
9
PISTON-BRAKE LONG
5132294
1930665
$104,99 Unit Price incl. VAT
10
MOUNT ASM CALIPER
1910412
9999999
Not Available
11
FRONT AFT BRAKE PADS KIT
2201398
2202412
$98,16 Unit Price incl. VAT
12
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
12
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT

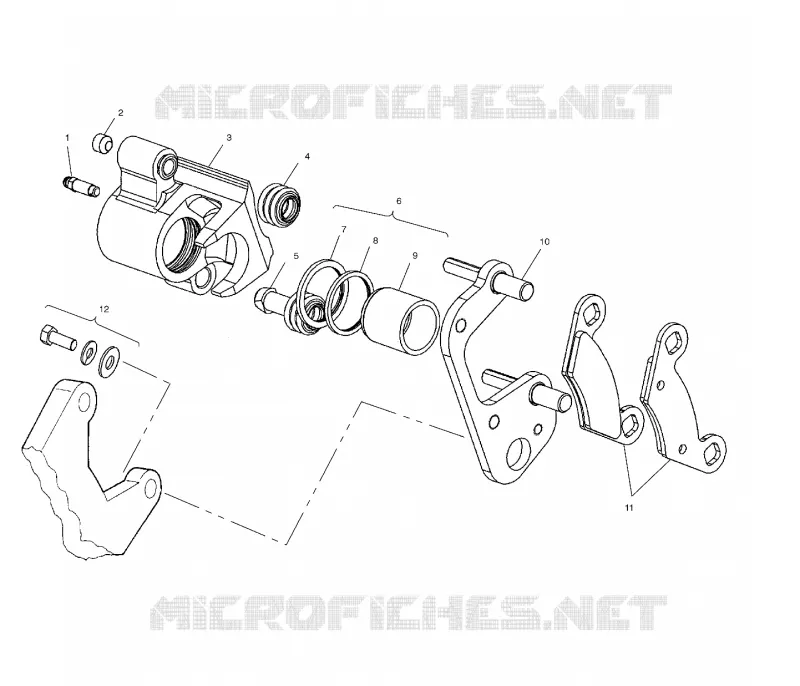

Find the detailed FRONT BRAKE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
