CHASSIS, FRAME AND FRONT BUMPER for POLARIS RANGER 500 2WD HDPE from 2017

BRAKES, PEDAL AND MASTER CYLINDER

DRIVE TRAIN, MAIN GEARCASE

CHASSIS, FRAME AND FRONT BUMPER

1

FLOOR SUPPORT WELD; LEFT; BLACK

1020159329

Not Available

2

FLOOR SUPPORT WELD; RIGHT; BLACK

1020160329

Not Available

3

K-FRAME MAIN MATTE BLK

2207514

$3 354,74 Unit Price incl. VAT

4

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

5

CAB SUPPORT WELD; FRONT; BLACK

1020151329

Not Available

6

WELD-SEAT BASE;CAB SUPT;M.BLK

1022550458

Not Available

7

SCREW

7517281

$13,64 Unit Price incl. VAT

8

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

9

BUMPER-RUBBER .62 STEALTH

5411435

$6,29 Unit Price incl. VAT

10

SKID PLATE

5450136

$188,99 Unit Price incl. VAT

11

SCREW

7517386

$2,09 Unit Price incl. VAT

12

SKID PLATE WASHER

7556065

$8,39 Unit Price incl. VAT

13

BUMPER; MATTE BLACK

1020136458

Not Available

14

BUMPER GUARD BRACKET; GLOSS BLACK

5438181070

Not Available

15

BUMPER SCREEN; UPPER; GLOSS BLACK

5438240070

Not Available

16

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

17

BOLT

7519650

$7,34 Unit Price incl. VAT

18

BUMPER CAP

5434191

$12,59 Unit Price incl. VAT

19

PANEL-HEAT-SHIELD

5510898

9999999

Not Available

20

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

21

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

22

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

23

PLUG-GROMMET

5453007

$5,24 Unit Price incl. VAT

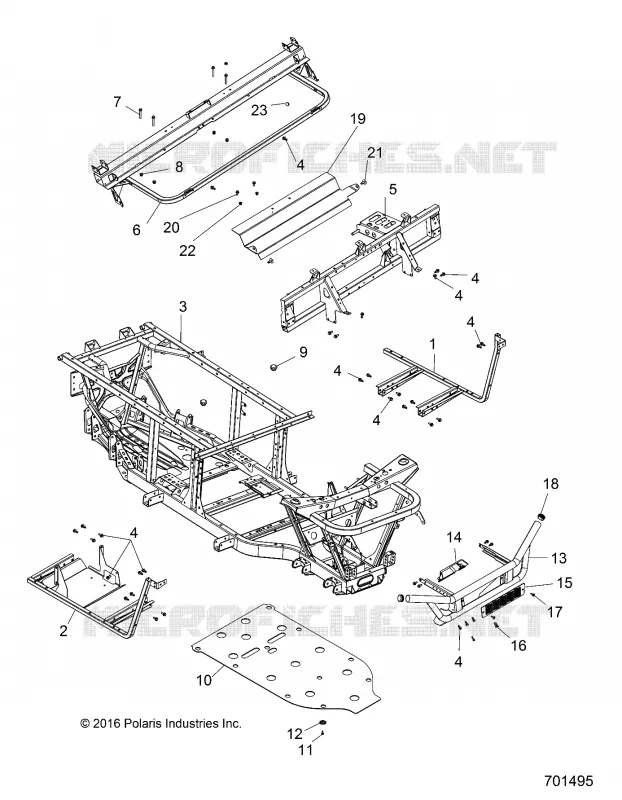

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
