SUSPENSION, FRONT STRUT for POLARIS RANGER 500 2WD HDPE from 2017

SUSPENSION, FRONT STRUT

1

NUT

7547104

$2,09 Unit Price incl. VAT

2

WASHER

7555749

$2,09 Unit Price incl. VAT

3

SPACER RUBBER

5810291

$7,34 Unit Price incl. VAT

4

PIVOT BALL; TOP

5432872

$19,94 Unit Price incl. VAT

5

SPACER 1 2 20

5132062

$36,74 Unit Price incl. VAT

6

BALL BOTTOM PIVOT

5432871

$19,94 Unit Price incl. VAT

7

RETAINER SPRING

5243364

$36,74 Unit Price incl. VAT

8

SPRING; MATTE BLACK

7044228458

Not Available

9

MCU BUMPER; 17.8 MM

5412665

$12,59 Unit Price incl. VAT

10

FRONT STRUT

7044149

$225,74 Unit Price incl. VAT

11

RETAINER-SPRING ALUMN

5633698

5639458

$14,69 Unit Price incl. VAT

12

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

13

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

14

SPINDLE-FRONT

1824107

9999999

Not Available

15

GREASELESS STRUT BALL JOINT

7061158

7061306

$52,49 Unit Price incl. VAT

16

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

17

SPACER-STRUT

1501212

$5,24 Unit Price incl. VAT

18

SCR-M8X1.25X65-HX/FL-Y CL 10.9

7519212

$9,44 Unit Price incl. VAT

19

INTERNAL RETAINING RING

7710507

$4,19 Unit Price incl. VAT

20

WHEEL BEARING; 35 MM X 64 MM X 37 MM

3514634

$73,49 Unit Price incl. VAT

21

HUBSTRUT ASSEMBLY; LEFT

1824515

$692,99 Unit Price incl. VAT

21

HUBSTRUT ASSEMBLY; RIGHT

1824516

$692,99 Unit Price incl. VAT

22

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

23

BALL JOINT BRACKET

5211121

$62,99 Unit Price incl. VAT

24

NUT NYLOK

7542344

$7,34 Unit Price incl. VAT

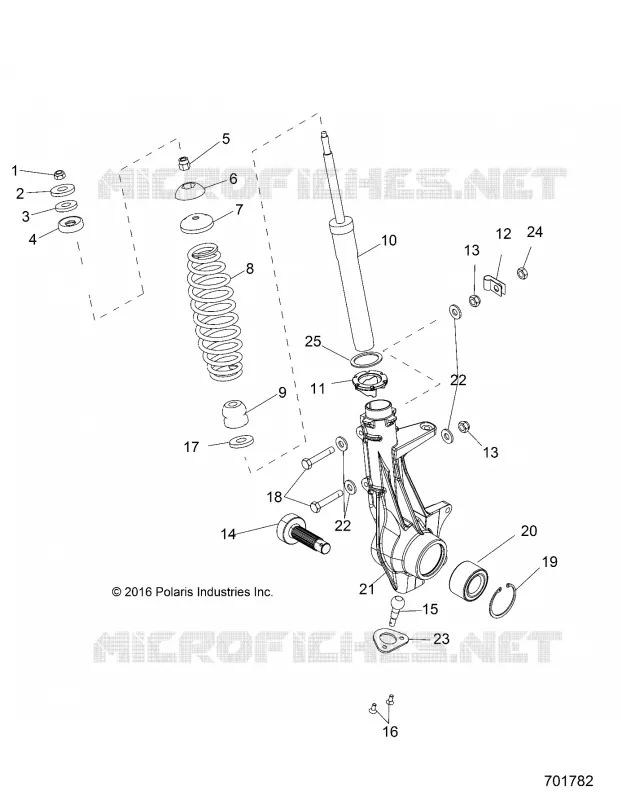

Find the detailed SUSPENSION, FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
