1
Engine displacement
500
2
Year
2000
3
Trim
SCRAMBLER 500 - A00BG50AA
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CONTROL PANEL
by
EXHAUST SYSTEM
COOLING SYSTEM
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
2
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
3
SHROUD FAN (ATV)
5432593
9999999
Not Available
4
SCREW
7512084
$2,09 Unit Price incl. VAT
5
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
6
GASKET
5810279
$4,19 Unit Price incl. VAT
7
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
8
SURGE TANK
5433410
9999999
Not Available
8
DESC NOT_AVAILABLE
2520165
Not Available
9
FUEL LINE; 1/4 ID
84500031525
Not Available
10
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
11
CLAMP-P CUSHIONED 1.25 I.D.
7080869
$20,99 Unit Price incl. VAT
12
HOSE; WATER
845005063
Not Available
13
HOSE CHAFE-PROTECTED
5411108
9999999
Not Available
14
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
15
SWITCH-THERMAL; 4 STROKE; 500CC
4010202
9999999
Not Available
16
CAP; RADIATOR
2511189
9999999
Not Available
17
RADIATOR"U"FLOW
1240015
9999999
Not Available
18
SCREW
7515133
$7,34 Unit Price incl. VAT
19
VALVE;DRAIN COCK
7052181
9999999
Not Available
20
SPACER
5020937
9999999
Not Available
21
MOUNT; RUBBER
3110032
9999999
Not Available
22
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
23
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
24
MOTOR FAN LIQ D-SHAFT CONN
4170013
9999999
Not Available
25
BRKT.COOL.FAN BLK
5241355067
Not Available
26
BLADE FAN NYLON 8
5242550
9999999
Not Available
27
SCREW
7517475
9999999
Not Available
28
BOLT
7512232
$2,09 Unit Price incl. VAT
29
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
30
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
31
NUT (10)
7547004
$9,44 Unit Price incl. VAT
32
BREAKER CIRCUT 10A FAN
4010369
9999999
Not Available

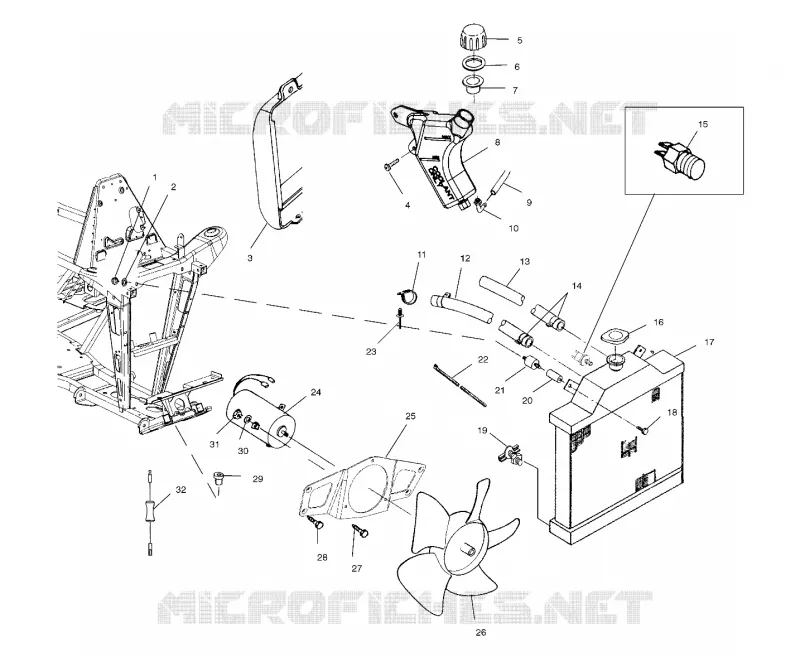

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
