1
Engine displacement
650
2
Year
1994
3
Trim
SL 650 - B944058
4
Parts Catalog
FUEL TANK SL 650 B944058 (4926992699005A)
5
Parts Diagram
Parts Catalog
FRONT STORAGE COMPARTMENT SL 650 B944058 (4926992699004A)
by
FUEL SYSTEM SL 650 B944058 (4926992699006A)
FUEL TANK SL 650 B944058 (4926992699005A)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
16
16
17
17
18
19
20
21
22
22
22
23
24
24
24
25
26
27
28
29
30
31
32
1
CHAIN/FUELCAPWHITE
2653004133
Not Available
2
ASM.CAPFUELBLK
2511195070
Not Available
3
CHAIN
7080440
9999999
Not Available
4
COUPLING
7080442
Not Available
5
RIVET(10)
7621222
9999999
Not Available
6
GASKET
5810512
9999999
Not Available
7
DESC NOT_AVAILABLE
5410640170
Not Available
8
SEAL; FUEL INLET
5810714
9999999
Not Available
9
RIVET
7621479
$3,66 Unit Price incl. VAT
10
INLET FUEL WATERCRAFT
5431343
Not Available
11
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
12
HOSE FILL FUEL
5410637
Not Available
13
TANK FUEL W/SEND.UNIT
2511237
Not Available
14
BUSHING FUEL TANK(10)
5333114
9999999
Not Available
15
BOLT; S.S.
7515365
9999999
Not Available
16
WASHER LOCK S.S.
7552610
9999999
Not Available
17
WASHER S.S.
7555834
9999999
Not Available
18
SUPPORT; FUEL TANK
5630414
9999999
Not Available
19
BOLT(10)
7515374
9999999
Not Available
20
BOLT S.S.(10)
7515373
Not Available
21
VALVE CHECK 2-WAY
7051012
Not Available
22
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
23
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT
24
FUEL LINE; 1/4 ID
84500031525
Not Available
25
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
26
GASKET DROPTUBE HOLDER
5810511
Not Available
27
HOLDER; DROPTUBE
5431347
9999999
Not Available
28
RETAINER DROPTUBE HOLDER Substituted by 5020801
5431346
Not Available
29
HOLDER ASM DROP TUBE
2520123
Not Available
30
SCREW
7512056
9999999
Not Available
31
SENDER ASM FUEL LEVEL
2410032
Not Available
32
GASKET
5810858
9999999
Not Available

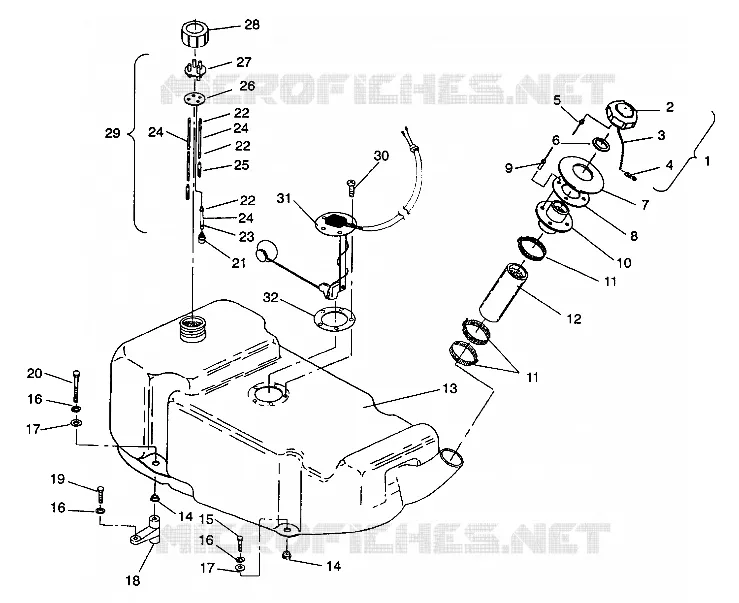

Find the detailed FUEL TANK SL 650 B944058 (4926992699005A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
