Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ
4
Parts Catalog
STEERING, HANDLEBAR CONTROLS
5
Parts Diagram
Parts Catalog
CONTROLS THROTTLE ASM. AND CABLE
by
SUSPENSION, A-ARM AND STRUT MOUNTING
STEERING, HANDLEBAR CONTROLS
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
1
1
1
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
5
6
6
7
7
8
9
10
11
12
13
14
1
HANDLEBAR GRIP; GLOSS BLACK
5413578070
Not Available
2
HI/LO/OFF CONTROL LEFT
4011835
4019044
$73,49 Unit Price incl. VAT
3
SCREW; SET
7517625
7528305
Not Available
4
HANDLEBAR TUBE; MEDIUM GLOSS BLACK
5244581067
Not Available
5
SCREW
7515189
9999999
Not Available
6
BLOCK-HANDLEBAR; PEG;89 ID
5631972
$62,99 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
SCREW
7517317
$6,29 Unit Price incl. VAT
9
HANDLEBAR BLOCK; .89 ID
5631973
$62,99 Unit Price incl. VAT
10
PLUG HOLE
5432952
$12,59 Unit Price incl. VAT
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
BRKT-POD MOUNTINGBLK
5244969067
Not Available
13
POD RECEPTACLE MOUNT; 12 VOLT
4010638
$52,49 Unit Price incl. VAT
14
HAND WARMER ASSEMBLY; ATV
2410567
$167,99 Unit Price incl. VAT

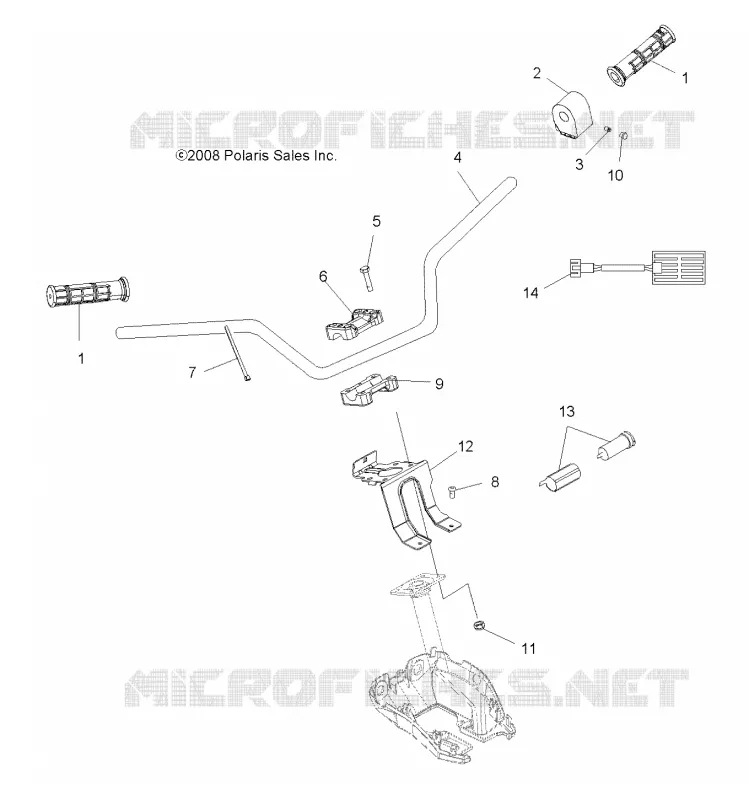

Find the detailed STEERING, HANDLEBAR CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
