Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ
4
Parts Catalog
SWITCHES AND SENSORS AND ECM
5
Parts Diagram
Parts Catalog
HEADLIGHTS
by
CRANKCASE
SWITCHES AND SENSORS AND ECM
1
2
3
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
15
15
16
17
18
19
19
20
21
22
23
24
1
REGULATOR
4012384
$535,49 Unit Price incl. VAT
2
ECU; NO START
4011599
$965,99 Unit Price incl. VAT
3
SCREW-10-24X2 TX/PH TAP-R
7518486
$6,29 Unit Price incl. VAT
4
CLAMP 1 IN HOSE
7080585
$7,34 Unit Price incl. VAT
5
SCREW SOCHD M6X20
7517384
$16,79 Unit Price incl. VAT
6
STOPLIGHT SWITCH
4110164
2890637
$325,49 Unit Price incl. VAT
7
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
8
3 POSITION KEY SWITCH
4012165
4083589
$202,64 Unit Price incl. VAT
8
BLANK KEY; 22/23/27/28
4010321
4083604
$27,29 Unit Price incl. VAT
8
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
9
IGNITION SWITCH NUT
5433733
9999999
Not Available
10
O-RING
3234302
$13,64 Unit Price incl. VAT
11
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
12
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT
13
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
14
BRKT-MOUNT VOLTAGE REG PLATED
5248725
9999999
Not Available
15
SCREW
7512024
$9,44 Unit Price incl. VAT
16
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
17
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
18
CRANK POSITION SENSOR
2410720
$220,49 Unit Price incl. VAT
19
SENSOR-THROTTLE POSITION KEIHN
2410342
1204715
$195,08 Unit Price incl. VAT
19
O-RING 10.5 MM X 1 MM
5413812
$3,66 Unit Price incl. VAT
20
SCREW
7517658
$10,49 Unit Price incl. VAT
21
SENSOR-T MAP
2410422
2411528
$178,49 Unit Price incl. VAT
22
SWITCH-TURF ON/OFF X2
4011966
9999999
Not Available
23
HAND WARMER SWITCH; HI/LO
4010963
9999999
Not Available
24
THUMB WARMER SWITCH; HI/LO
4010964
9999999
Not Available

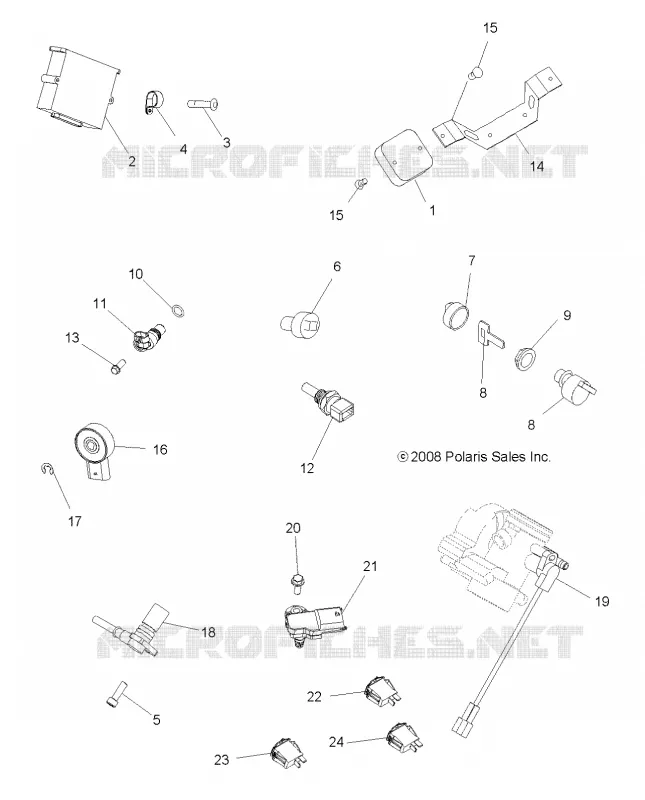

Find the detailed SWITCHES AND SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
