1
Engine displacement
800
2
Year
1999
3
Trim
800 XCR - 099AB8AS
4
Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
HOOD
by
CONTROLS
FRONT SUSPENSION AND SKI
1
2
2
3
4
5
6
6
7
8
9
10
10
10
10
11
11
11
11
12
12
13
13
14
15
16
17
17
17
17
18
19
19
19
19
20
21
22
23
24
25
26
27
28
29
29
29
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
44
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
59
59
1
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
2
STRAP SPACER BOTTOM
5211345
9999999
Not Available
3
NUT FLEXOC;
7542703
9999999
Not Available
4
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
5
BOLT
7512551
9999999
Not Available
6
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
7
BAR SWAY BLK
5224742067
Not Available
8
SWAY BAR BUSHING
5432038
9999999
Not Available
9
RIVET (50)
7621477
9999999
Not Available
10
NUT LOCK
7542403
9999999
Not Available
11
ARM RH STRG BLK.
5241661067
Not Available
11
ARM LH STRG BLK.
5241660067
Not Available
12
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING TUBE
5010310
9999999
Not Available
15
RUBBER PIVOT
5410872
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
TRAILING ARM RH;KIT
2201471
9999999
Not Available
17
TRAILING ARMLHKIT
2201470
9999999
Not Available
18
SWAYBAR SLIDE; 5/8
5432561
9999999
Not Available
19
STOP RH STRG BLK.
5241778067
Not Available
19
STOP LH STRG BLK
5241777067
Not Available
20
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
21
BUSHING
7556509
$3,14 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
24
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
25
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
26
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
27
COMP.SKIBLANK W/RK SDL BLK
1820610070
Not Available
28
SKAG CARBIDE; (PAIR) 6 OF 60 DEGREE
2871687
$125,99 Unit Price incl. VAT
29
WASHER
7555832
$4,19 Unit Price incl. VAT
30
SCREW
7512596
9999999
Not Available
31
BOLT
7515514
$13,64 Unit Price incl. VAT
32
BOLT
7515307
$7,34 Unit Price incl. VAT
33
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
34
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
35
TOE PLASTIC SKI BLK
5432209070
Not Available
36
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
37
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
38
SUPPORT SKI RUBBER MEDIUM GLOSS BLACK
5241912067
Not Available
39
RETAINER-SKI RUBBER
5243127
9999999
Not Available
40
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
41
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
42
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
43
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
44
SCREW
7515415
9999999
Not Available
45
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
46
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
47
ROD RAD UP.
1822457067
Not Available
48
ROD RAD LOW.
1822458067
Not Available
49
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
50
ROD END;1/2 LINED
7061011
7061071
$99,74 Unit Price incl. VAT
51
BOLT
7512678
$36,74 Unit Price incl. VAT
52
SUPPORT PANBRAKE LOW.
5240699067
Not Available
53
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
54
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
55
NUT FLEXLOCK
7542503
9999999
Not Available
56
ROD END 7/16 LINED
7061010
9999999
Not Available
57
NUT JAM(10)
7542520
9999999
Not Available
58
SCREW
7515433
$3,14 Unit Price incl. VAT
59
SPRING; FRONT; MEDIUM GLOSS BLACK
7041575067
Not Available
59
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

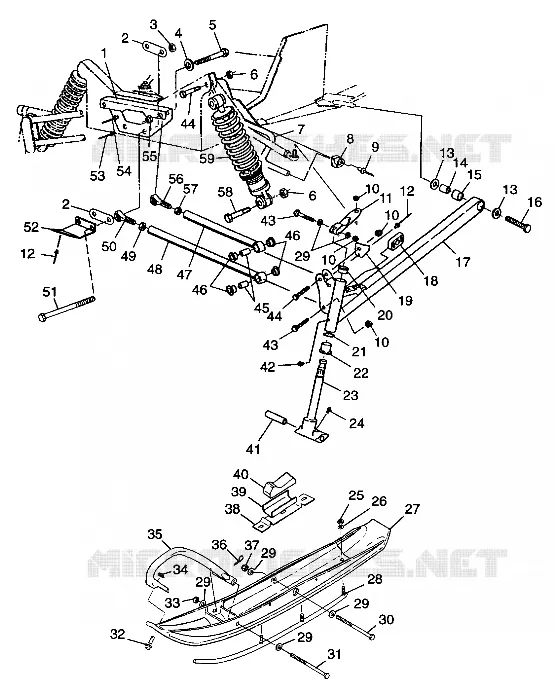

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
