1
Engine displacement
600
2
Year
1986
3
Trim
NOR 600 - N860757
4
Parts Catalog
FRONT SUSPENSION AND SKI (600 LE) (4910941094011A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI (TRAIL, 400, 600) (4910941094009A)
by
STEERING (4910941094013A)
FRONT SUSPENSION AND SKI (600 LE) (4910941094011A)
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
4
SCREW
7515415
9999999
Not Available
5
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
6
SPRING FRONT(SE)
7041153
Not Available
7
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FRONT(SE) [No Longer Available]
7041152
Not Available
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
BOLT
7512404
$7,34 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
9999999
Not Available
13
SCREW
7515433
$3,14 Unit Price incl. VAT
14
WASHER (SE) (10) [No Longer Available]
7555741
Not Available
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
BOLT
7512557
9999999
Not Available
18
ARM TRAIL LH (SE) [No Longer Available]
1822058
Not Available
18
ARM TRAIL RH (SE) [No Longer Available]
1822059
Not Available
19
STOP STRG.LH(SE) [No Longer Available]
5220427
Not Available
19
STOP; STRG. (SE)
5220437
9999999
Not Available
20
ARM; STRG.(SE)
5220429
9999999
Not Available
21
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
22
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
23
DECAL IFS BLUE [No Longer Available]
7072220
Not Available
24
SPINDLE GREASABLE Substituted by 5130919-067
6230055
Not Available
25
FITTING-LUBE.
7080220
9999999
Not Available
26
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
27
STOP-RUBBER
5521094
9999999
Not Available
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
29
BOLT(10)
7515465
9999999
Not Available
30
SKAG 3 BOLT Substituted by 1820261
1820249
Not Available
31
SKI (L.E.)
1820252
9999999
Not Available
32
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
33
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
34
ROD LOWER RADIUS CHROME [No Longer Available]
1822056
Not Available
35
ROD UPPER RADIUS CHROME [No Longer Available]
1822057
Not Available
36
NUT JAM(10)
7542520
9999999
Not Available
37
ROD END RH
7060126
9999999
Not Available
38
STRAP-SPACER
5220178
9999999
Not Available
39
NUT (10)
7542513
Not Available
40
BRACE; PAN
5223997
9999999
Not Available
41
NUT FLEXOC;
7542703
9999999
Not Available
42
ROD END
7060127
9999999
Not Available
43
STRAP-SPACER BOTTOM
5220227
9999999
Not Available
44
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
45
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
46
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
47
BUSHING
7556509
$3,14 Unit Price incl. VAT
48
BAR-SWAY 9/16
5224237
5224237-067
Not Available
49
BUSHING-SWAYBAR
5410383
9999999
Not Available
50
RIVET
7621433
$2,09 Unit Price incl. VAT
51
WASHER
7555803
9999999
Not Available
52
SCREW SKI COVER (SE) (10) [No Longer Available]
7510501
Not Available
53
COVER SKI FRONT(SE) [No Longer Available]
5220534
Not Available
54
COVER SKI REAR(SE) [No Longer Available]
5220535
Not Available
55
DESC NOT_AVAILABLE
7072216
Not Available
55
DESC NOT_AVAILABLE
7072215
Not Available
56
DESC NOT_AVAILABLE
7072218
Not Available
56
DESC NOT_AVAILABLE
7072217
Not Available
57
DECAL STRUT L.E. [No Longer Available]
7072270
Not Available

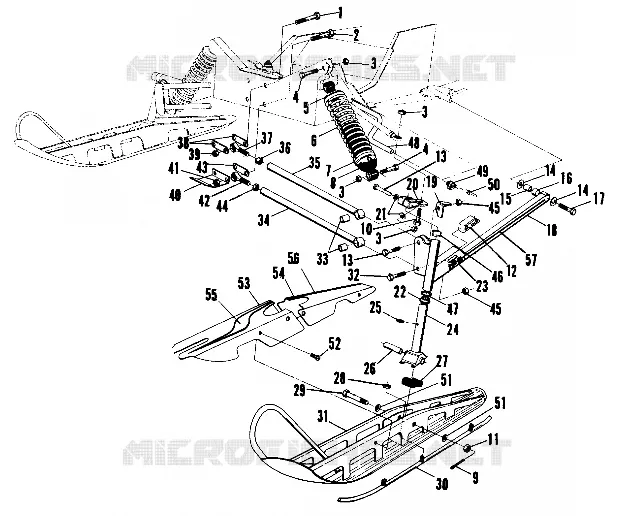

Find the detailed FRONT SUSPENSION AND SKI (600 LE) (4910941094011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
