COOLING SYSTEM for POLARIS SPORTSMAN 570 SP from 2019

COOLING SYSTEM

1

PRESSURE CAP

1240508

$89,24 Unit Price incl. VAT

2

RADIATOR ASSEMBLY; 324 X 300

1240520

1241477

$834,74 Unit Price incl. VAT

3

GROMMET AND INSERT ASSEMBLY

5413155

$7,34 Unit Price incl. VAT

4

ENGINE HOSE; LOWER

5414805

$73,49 Unit Price incl. VAT

5

FORMED BYPASS HOSE; 3/8 IN

5414806

$68,24 Unit Price incl. VAT

6

TEE CONNECTOR; 1 X 1 X 0.5

7052530

$10,49 Unit Price incl. VAT

7

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

8

CLAMP-HOSE SPRING 20MM

7081719

$10,49 Unit Price incl. VAT

9

FAN AND MOTOR ASSEMBLY

2411330

$303,96 Unit Price incl. VAT

10

SPACER-6.6IDX19ODX15 NYL BLK

5137361

$10,49 Unit Price incl. VAT

11

FILLER NECK

5412402

$52,49 Unit Price incl. VAT

12

FILLER NECK HOSE

5414228

$29,39 Unit Price incl. VAT

13

RADIATOR HOSE UPPER

5415336

5417382

$68,24 Unit Price incl. VAT

14

HOSE-RADIATOR LOWER

5415229

9999999

Not Available

15

CONDUIT-FLEX 1.00 ID PE 10CM

552179310

Not Available

16

SPRINGBAND CLAMP; 27/12; GREEN

7080841

$13,64 Unit Price incl. VAT

17

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

18

SCREW

7516827

$12,59 Unit Price incl. VAT

19

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

20

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

21

FUEL LINE; 1/4 ID

84500031525

Not Available

22

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

23

SPRING-COOLANT HOSE GUIDE

5338063

5342957

$12,59 Unit Price incl. VAT

24

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

25

OVERFLOW BOTTLE WITH FITTING CAP

5437635

$9,44 Unit Price incl. VAT

26

GASKET

5810279

$4,19 Unit Price incl. VAT

27

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

28

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

29

SCREW

7512084

$2,09 Unit Price incl. VAT

30

SCREW

7515179

$4,19 Unit Price incl. VAT

31

SCREW

7517386

$2,09 Unit Price incl. VAT

32

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

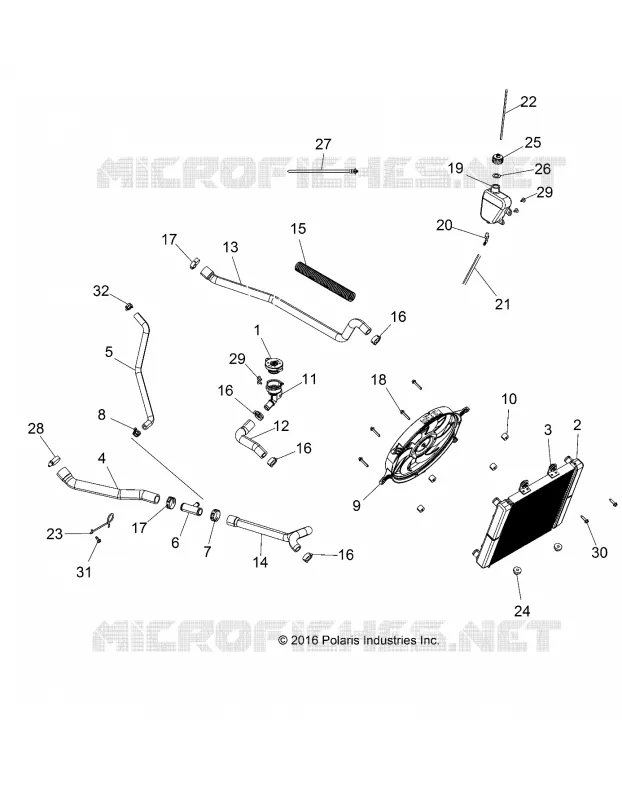

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
