1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 SP
4
Parts Catalog
POWER STEERING EPS
5
Parts Diagram
Parts Catalog
OWNERS MANUAL
by
FRONT SUSPENSION
POWER STEERING EPS
1
2
3
4
5
6
7
7
8
8
9
9
10
11
11
11
11
12
12
13
13
14
14
15
15
15
15
16
16
1
STEERING POST WELD; UPPER; BLACK
1824678329
Not Available
2
STEERING POST ASSEMBLY; LOWER
1824203
1830310
$220,49 Unit Price incl. VAT
3
POWER STEERING ASSEMBLY ATV
2414461
9999999
Not Available
4
STEERING BUSHING BRACKET; UPPER
5257028
$62,99 Unit Price incl. VAT
5
PLATE-MNT POWER STEERING BLK
5259190329
Not Available
6
STEERING BUSHING; UPPER; 1 IN
5439731
$12,59 Unit Price incl. VAT
7
SCREW
7515398
9999999
Not Available
8
SCREW
7516827
$12,59 Unit Price incl. VAT
9
BOLT
7517428
$4,19 Unit Price incl. VAT
10
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
11
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
12
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
13
TIE ROD ASSEMBLY
1824206
$194,24 Unit Price incl. VAT
14
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
15
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
16
WASHER
7556153
$3,66 Unit Price incl. VAT

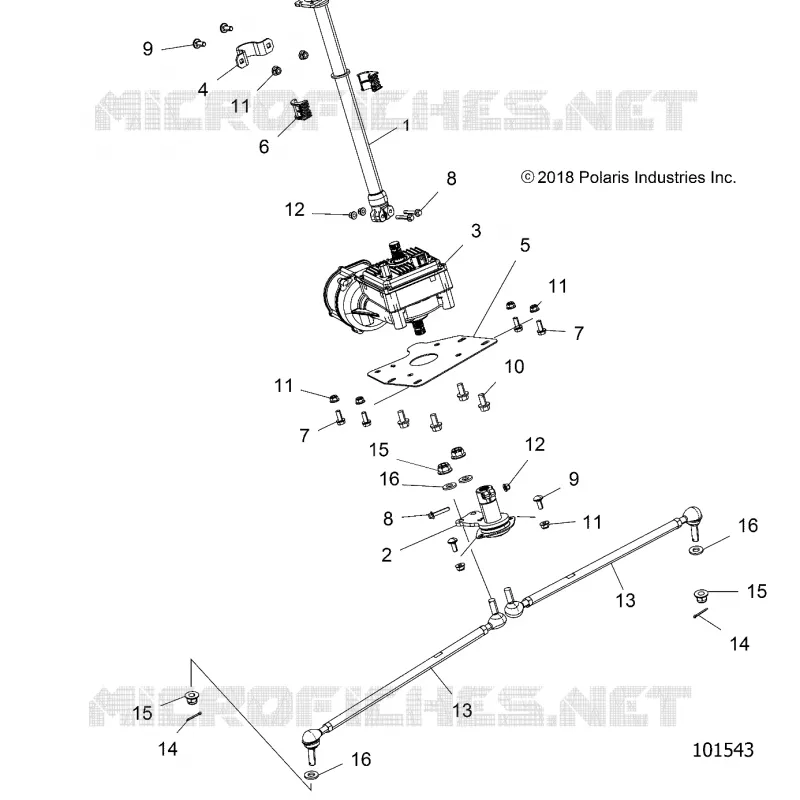

Find the detailed POWER STEERING EPS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
