1
Engine displacement
700
2
Year
2002
3
Trim
700 RMK F/O 144 BUILT AFTER 3/1/01
4
Parts Catalog
CHASSIS
5
Parts Diagram
Parts Catalog
SHOCK (REAR TRACK)
by
CHASSIS
CHASSIS
1
Asm. Chassis
1013452309
Not Available
2
BOLT-CARRIAGE
7512275
9999999
Not Available
3
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
4
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
5
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
6
STOP TORQUE COURSE 3/8-16
3021104
$36,74 Unit Price incl. VAT
7
NUT
7542404
$3,14 Unit Price incl. VAT
8
WELD-TORQUE STOP;S44
1013379
9999999
Not Available
9
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
10
SCREW
7517632
$10,49 Unit Price incl. VAT
11
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
12
BRKT-JACKSHAFT SHIELD
5245003
9999999
Not Available
13
BRACKET-OIL BOTTLE
5245202
9999999
Not Available
14
BRKT-AIRBOX EDGE
5245725
9999999
Not Available
15
MOUNT KIT; TRAILING ARM; LEFT
2202059
9999999
Not Available
15
KIT-MOUNT TRAILING ARM RH
2202060
9999999
Not Available
16
EXTRUSION CLUTCHGUARD
5521238
9999999
Not Available
17
STRAP
5433150
$47,24 Unit Price incl. VAT
18
TOE CLIP CONSOLE MOUNT; LEFT
5245457
9999999
Not Available
18
CONSOLE MOUNT; TOE CLIP; RIGHT
5245458
9999999
Not Available
19
RIVET
7661637
$2,09 Unit Price incl. VAT
20
SUPPORT-FOOTREST LH
5242741
9999999
Not Available
20
SUPPORT-FOOTREST RH
5242742
9999999
Not Available
21
FOOTREST RH
5242740
9999999
Not Available
21
FOOTREST; LEFT
5245288
9999999
Not Available
22
GUARD-ADAPTER DRIVE
5221583
9999999
Not Available
23
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
24
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
25
BULKHEAD-FRONT MACH
5132292
9999999
Not Available

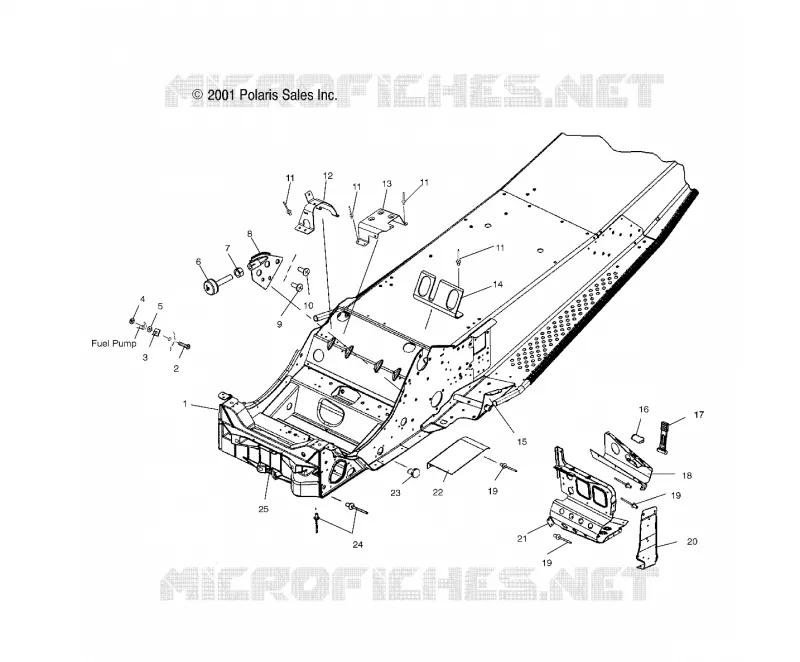

Find the detailed CHASSIS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
