ENGINE, ENGINE AND TRANSMISSION MOUNTING for POLARIS RANGER 570 EPS / HDPS / EU / ZUG / POLAND from 2017

ENGINE, BREATHER

ENGINE, ENGINE AND TRANSMISSION MOUNTING

1

HOSE CLAMP

3083141

$2,09 Unit Price incl. VAT

1

TRANS WELD; INNER; LEFT

1018420

1025909

$120,74 Unit Price incl. VAT

2

PIPE RUBBER Substituted by 3083140

3083446

Not Available

2

TRANSMISSION WELD; INNER; RIGHT

1018421

1025910

$120,74 Unit Price incl. VAT

3

BRKT-COUPLER TRANS OUTER

5255321

$19,94 Unit Price incl. VAT

3

SCREW-AIR VENT

3083125

9999999

Not Available

4

ENGINE MOUNT WELD; BLACK

1018903329

Not Available

4

PACKING(10)

3083126

9999999

Not Available

5

DRIVELINE ISOLATOR MOUNT

1332955

$136,49 Unit Price incl. VAT

5

OIL PUMP ASM. Substituted by 3085542 (F1B) (Incl. 4 5 7 13-18)

3083806

Not Available

6

FUEL LINE-46 CENTIMETERS

845004046

Not Available

6

ASM. SCREW & WASHER (10)

3083783

9999999

Not Available

7

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

7

CAP

3083758

9999999

Not Available

8

SPRING-RETURN

3083123

9999999

Not Available

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

COLLAR CAMSHAFT

3083757

9999999

Not Available

9

M10 X 1.25 X 60 SCREW

7518563

$5,76 Unit Price incl. VAT

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM

7519332

$10,49 Unit Price incl. VAT

10

LEVER CONTROL

3083935

Not Available

11

M10 X 1.25 X 60 SCREW

7518563

$5,76 Unit Price incl. VAT

11

WASHER-SPRING(10)

3083121

1205792

$614,24 Unit Price incl. VAT

12

HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM

7519097

$3,14 Unit Price incl. VAT

12

NUT(10)

3083120

9999999

Not Available

13

O-RING

3083127

9999999

Not Available

13

PALNUT

7547030

$9,44 Unit Price incl. VAT

14

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

14

SPACER 3.6MM

3083673

5141621

$8,39 Unit Price incl. VAT

14

SPACER 2.3 MM

3083672

5141620

$6,29 Unit Price incl. VAT

14

SPACER 1.15MM

3083671

5141619

$6,29 Unit Price incl. VAT

15

BUSHING

3083353

9999999

Not Available

15

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

16

O-RING

3083129

9999999

Not Available

16

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

17

GEAR SMALL

3083429

9999999

Not Available

18

SPACER

3083428

9999999

Not Available

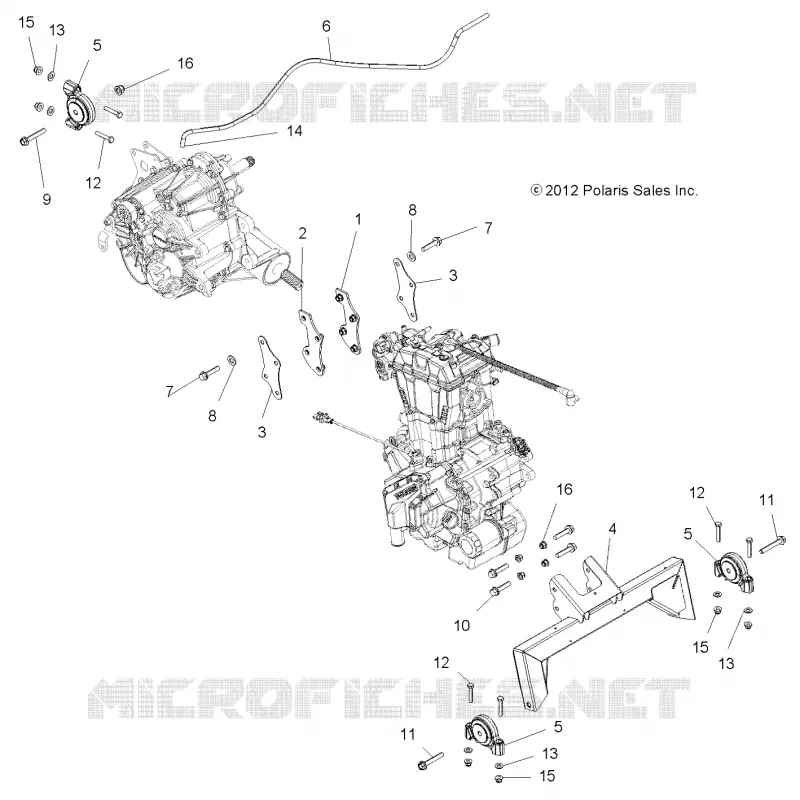

Find the detailed ENGINE, ENGINE AND TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
