1
Engine displacement
650
2
Year
1990
3
Trim
NOR 650 - N900758
4
Parts Catalog
CONSOLE 650 (4916801680006A)
5
Parts Diagram
Parts Catalog
NOSE PAN 650 Updated 2/90 (4916801680005A)
by
FRONT SUSPENSION AND SKI 650 (4916801680007A)
CONSOLE 650 (4916801680006A)
1
CONSOLE(SWED#87INDY) [No Longer Available] (All Models)
5220959
Not Available
2
POP RIVET(10)
7621425
$2,09 Unit Price incl. VAT
3
BOLT
7512007
$7,34 Unit Price incl. VAT
4
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
NUT-IGNITION SWITCH
7542807
9999999
Not Available
7
IGNITION KEY
5410378
9999999
Not Available
8
DECAL CONSOLE [No Longer Available]
7072421
Not Available
9
IGNITION SWITCH
4110038
9999999
Not Available
10
CHOKE CABLE
7080283
9999999
Not Available
11
CHOKE CONTROL KIT
2200189
9999999
Not Available
12
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
REGULATOR - MINKS
4060071
Not Available
14
HEAT SINK
5210650
9999999
Not Available
15
HARNESS MAIN WIRE (400 & 650)
2460262
Not Available
16
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
17
TERMINAL
4020113
Not Available
17
CONNECTOR BRAKE SWITCH
4020112
Not Available
18
TERMINAL RING Substituted by 4020092
2200029
Not Available
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Not Available
20
HOUSING W/RECEPTACLES
2200039
Not Available
21
HOUSING 3 CIRCUIT W/REC
2200022
Not Available
22
CONNECTOR TACH.
2200094
Not Available
23
RECEPTACLE
4020061
Not Available
24
KIT HOUSING 2 CIRCUIT
2200095
Not Available
25
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
26
SW;HEATER;HI-LOW
4110077
9999999
Not Available
27
MT. RECOIL
5224296
Not Available
28
BOLT-CARRIAGE
7512263
9999999
Not Available
29
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
30
CONNECTOR-TEMP.LIGHT (400 600 600 SE)
2200177
Not Available
31
TETHER SWITCH KIT; COILED
2870668
9999999
Not Available
31
DECAL HI-LO GRIP HTR. [No Longer Available] (500 Classic & 650 Only)
7072669
Not Available

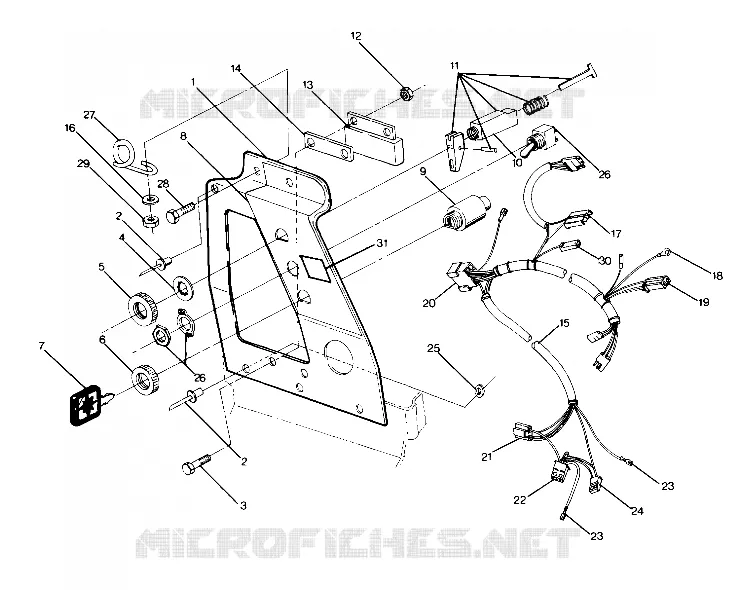

Find the detailed CONSOLE 650 (4916801680006A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
