STEERING for POLARIS RANGER 6X6 800 EFI - R10HR76AG/AR from 2010

STEERING

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

3

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BOOT CLAMP; SMALL

7080978

$4,19 Unit Price incl. VAT

6

PASSENGER SIDE BOOT RACK

5412013

$104,99 Unit Price incl. VAT

7

BOOT CLAMP; LARGE

7080979

$10,49 Unit Price incl. VAT

8

HEX BOLT; 8 MM X 1.25 MM X 95 MM

7518935

$3,14 Unit Price incl. VAT

9

SCR HEXHD M10X35

7517827

$12,59 Unit Price incl. VAT

10

BOLT CAP; 8 MM X 1.25 MM

7517924

$8,39 Unit Price incl. VAT

11

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

12

STEERING SHAFT BUSHING

5434106

$16,79 Unit Price incl. VAT

13

BUSHING

7556301

$6,29 Unit Price incl. VAT

14

STEERING WHEEL

1823622

$246,74 Unit Price incl. VAT

15

NUT-M16X2-6G

7547188

$10,49 Unit Price incl. VAT

16

STEERING WHEEL CAP

5436536

$62,99 Unit Price incl. VAT

17

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518702

$7,34 Unit Price incl. VAT

18

WAVE WASHER

7556063

$5,76 Unit Price incl. VAT

19

STERING SHAFT; UPPER

1823357

9999999

Not Available

20

STEERING SHAFT WITH JOINTS; LOWER

1823356

9999999

Not Available

21

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

22

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

23

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

24

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

25

WASHER

7556099

$3,14 Unit Price incl. VAT

26

NUT-M10X1.25-HX-LOCK-Y

7547177

7548155

$1,56 Unit Price incl. VAT

27

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

28

STEERING GEAR BOX ASSEMBLY; 6 X 6

1823712

9999999

Not Available

29

WELD-TILT STEERINGEWB

1016403521

Not Available

30

SHOULDER BOLT

7517607

$10,49 Unit Price incl. VAT

31

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

32

PEDAL PIVOT BUSHING

5431107

$16,79 Unit Price incl. VAT

33

WASHER

7555919

$7,34 Unit Price incl. VAT

34

ASM-SHOCK OIL LOCKING

7043523

7043810

$173,24 Unit Price incl. VAT

35

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

36

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

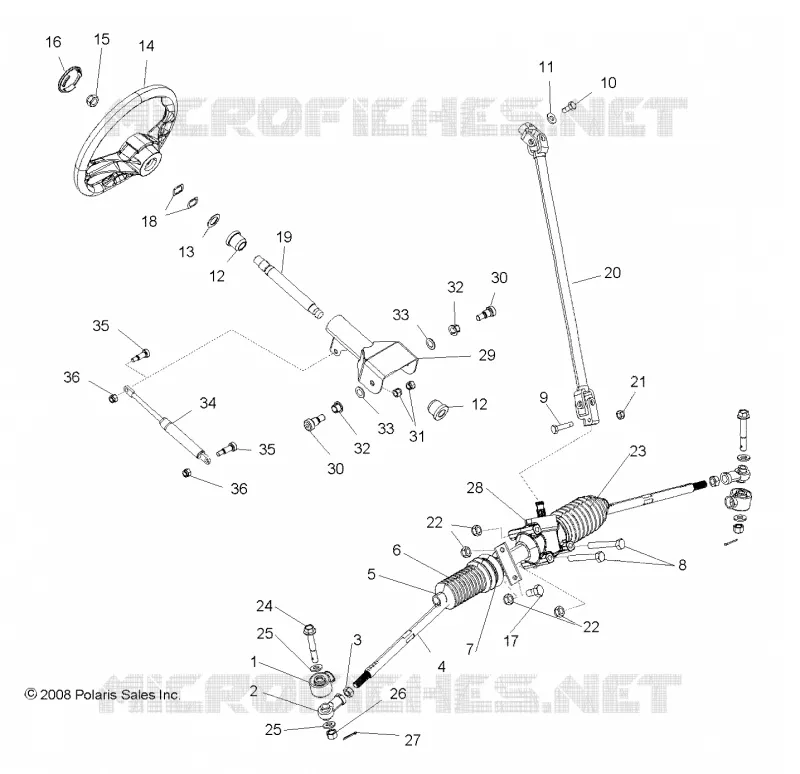

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
