1
Engine displacement
700
2
Year
2003
3
Trim
700 RMK 144 F/O
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
WATER PUMP
CYLINDER
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
20
21
22
23
23
24
25
26
27
27
28
29
30
31
32
1
O-RING LIP SEAL
5411521
9999999
Not Available
2
THERMOSTAT-120 F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
3
COVER-THERMOSTAT M6 BLEED LG
5630992
9999999
Not Available
4
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
5
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
6
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
7
SCREW 8 MM X 1.25 MM X 60 MM
7517534
9999999
Not Available
8
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
9
TEMPERATURE SENSOR
4010398
9999999
Not Available
10
COVER-HEAD 81MM 700 RED E-COAT
5631201366
Not Available
10
COVER-HEAD 85MM 800 RED E-COAT
5631202366
Not Available
11
RUBBER SEAL HEAD
5411294
9999999
Not Available
12
O RING
5410917
$1,56 Unit Price incl. VAT
13
HEAD-CYL 85MM TWN SNO EV W/OMA
3021324
9999999
Not Available
13
HEAD-CYL 81MM TWN SNO EV W/OMA
3021323
9999999
Not Available
14
O-RING 4.98 X 5.129 X .07
5412232
$11,54 Unit Price incl. VAT
15
HI-TEMP O-RING; 3.625 X 3.765 X .07
5411675
$41,99 Unit Price incl. VAT
15
O-RING
5410932
$36,74 Unit Price incl. VAT
16
CYLINDER 81 MM SNO EV
3021340
9999999
Not Available
16
CYLINDER-85MM EV W/ DECOM
3021339
9999999
Not Available
17
VALVE-GUILLOTINE 800 DECOM
5133775
2202838
$283,49 Unit Price incl. VAT
17
VALVE-GUILLOTINE GEN 3.5;700EV
5132669
9999999
Not Available
18
GASKET-BASE TO CYL EXH VALVE (10)
5812350
5815584
$11,54 Unit Price incl. VAT
19
ASM-BASE EXH VALVE DOM
1202216
9999999
Not Available
20
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
21
BELLOWS-EXHAUST VALVE FABRIC
5412147
5414495
$89,24 Unit Price incl. VAT
22
CAP/NUT BELLOWS-EXH VALVE DOM
5631381
5631687
$52,49 Unit Price incl. VAT
23
EXHAUST SPRING FOR GUILLOTINE VALVE
704170403
Not Available
23
GUILATINE EXHAUST VALVE SP ORANGE
704170402
Not Available
24
HOUSING-BELLOWS EXH VALVE BUSH
5434599
1202640
$27,29 Unit Price incl. VAT
25
SCREW
7516820
$10,49 Unit Price incl. VAT
26
SCR-M6X1.0X50.0 HX/FL-YD (10)
7517932
$7,34 Unit Price incl. VAT
27
CYLINDER BASE METAL GASKET; 800
5812363
9999999
Not Available
27
CYLINDER BASE GASKET; METAL 700
5812362
9999999
Not Available
28
NUT
7547013
$3,14 Unit Price incl. VAT
29
CONDUIT FLEX(.75 ID)
552139896
Not Available
30
HOSE BYPASS
5411536
9999999
Not Available
31
CLAMP-BYPASS NORMA #24-15
7081030
9999999
Not Available
32
FITTING 1/2ID.HOSE
7052222
$41,99 Unit Price incl. VAT

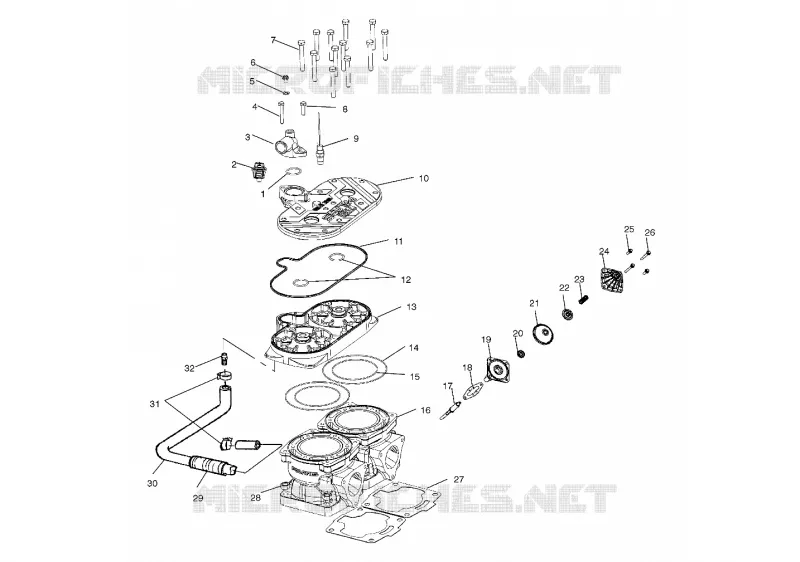

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
