1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EPS EU SP
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
ELECTRICAL, GAUGES AND INDICATORS
by
ENGINE, COOLING SYSTEM
ENGINE, AIR INTAKE SYSTEM
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
1
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
2
AIR INLET DUCT
5450386
9999999
Not Available
3
AIR BOX COVER
5450388
5459622
$83,99 Unit Price incl. VAT
4
AIRBOX COVER SEAL
5813949
$52,49 Unit Price incl. VAT
5
SCREW
7517317
$6,29 Unit Price incl. VAT
6
CLIP
5242044
$17,84 Unit Price incl. VAT
7
COMPARTMENT PLUG
5412981
5418084
$6,29 Unit Price incl. VAT
8
ENGINE BOOT INTAKE
5415034
$167,99 Unit Price incl. VAT
9
AIR INTAKE BOX; SPORTSMAN
5450387
$257,24 Unit Price incl. VAT
10
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
11
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
11
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
12
HOSE-BREATHER FORMED 570
5415276
$68,24 Unit Price incl. VAT
13
SLEEVE-CARB INNER
5433847
$27,29 Unit Price incl. VAT
14
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT
15
VALVE BREATHER WITH .53 IN BARB ID
7052577
$52,49 Unit Price incl. VAT
16
AIR INTAKE FILTER
7082101
7083107
$51,23 Unit Price incl. VAT
17
CLAMP-HOSE 2.75 -SS
7080446
$20,99 Unit Price incl. VAT
18
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
19
SCREW
7517685
$3,14 Unit Price incl. VAT

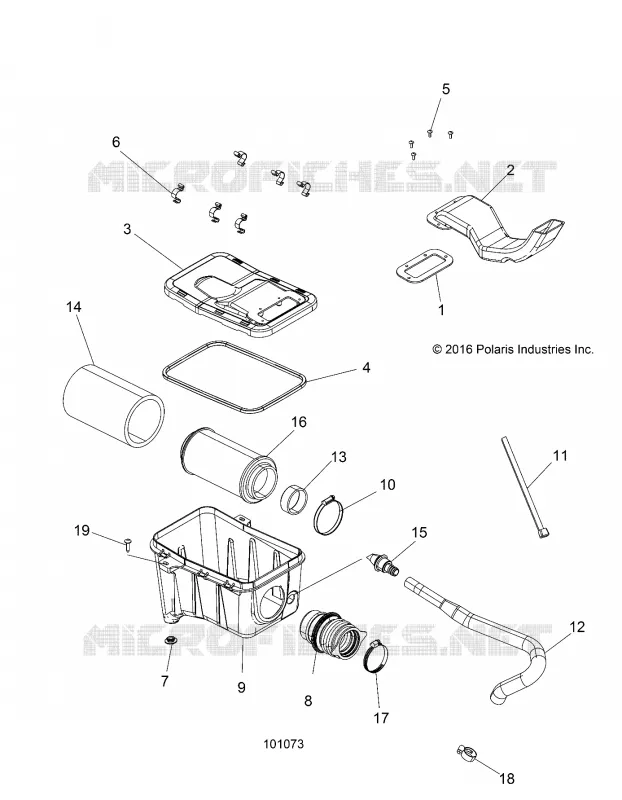

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
