SUSPENSION, REAR for POLARIS 800 TITAN SP / ADVENTURE / XC from 2019

SUSPENSION, CONTROL ARMS AND SPINDLE

DRIVE TRAIN, CLUTCH, SECONDARY

SUSPENSION, REAR

1

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

2

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

3

WELD-REAR PIVOT BLK

1543725329

Not Available

4

SHAFT-CROSS C-BORE

5140500

$62,99 Unit Price incl. VAT

5

WELD-SHOCK PIVOT ARM WT BLK

1543726329

Not Available

6

WSHR-10.4X28.58X2.4 ZOD

7556563

$6,29 Unit Price incl. VAT

7

WASHER-30MM ODX 21MM ID X 1.5

7556483

$7,34 Unit Price incl. VAT

8

SHAFT-CROSS FTA WT

5140496

$68,24 Unit Price incl. VAT

9

WELD-H-BRACKET WT ECOAT

1543723329

Not Available

10

TUBE OUTER SPACER

5333012

$20,99 Unit Price incl. VAT

11

BUSHING

7556301

$6,29 Unit Price incl. VAT

12

SHAFT-FTS LOWER WT

5140501

$52,49 Unit Price incl. VAT

13

BEARING

3514303

$20,99 Unit Price incl. VAT

13

ASM-WHEEL 5.5 PLAIN W/INSERT

1590590

$80,31 Unit Price incl. VAT

13

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

13

CENTER IDLER SPACER; LIGHTWEIGHT

5338618

$13,64 Unit Price incl. VAT

14

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

15

SHAFT-LMTR CROSS WT

5140493

$73,49 Unit Price incl. VAT

16

FLANGED BUSHING; 18 X 20 X 48

5438921

$34,64 Unit Price incl. VAT

17

SPRING-EXTENSION

7044715

$36,74 Unit Price incl. VAT

18

TRACK; 20 IN X 155 IN

5416227

9999999

Not Available

18

TRACK; 20 X 155 IN; COBRA

5416020

$1 572,89 Unit Price incl. VAT

18

TRACK; 20 IN X 155 IN

5415826

9999999

Not Available

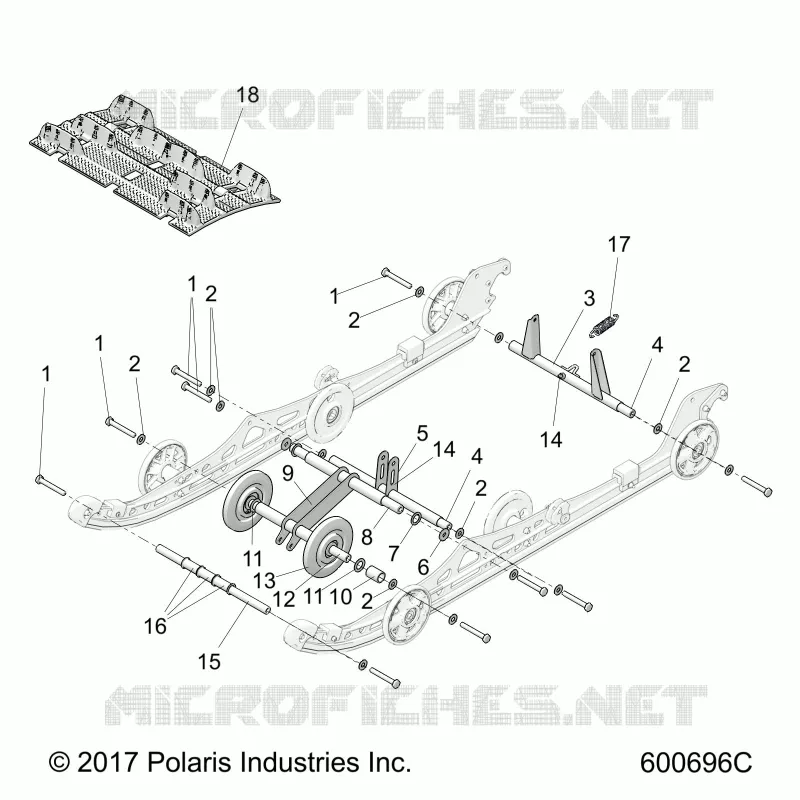

Find the detailed SUSPENSION, REAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
