1
Engine displacement
650
2
Year
1992
3
Trim
SL 650 - B924058
4
Parts Catalog
STEERING SL 650/B924058 (4922922292009A)
5
Parts Diagram
Parts Catalog
DECALS SL 650/B924058 (4922922292003A)
by
ENGINE MOUNTING SL 650/B924058 (4922922292011A)
STEERING SL 650/B924058 (4922922292009A)
19
20
21
22
23
24
25
25
26
26
27
28
29
30
31
32
33
33
34
35
36
37
38
38
38
39
39
39
39
40
40
41
41
42
42
43
44
44
45
46
47
48
49
50
1
COVER TOP H BAR
5431376157
Not Available
2
COVER BOTT.H#BAR
5431377157
Not Available
3
CABLE TIE
7080346
9999999
Not Available
4
SCREW(10)
7511870
9999999
Not Available
5
POST STEERING
1823152
Not Available
6
HUB STRG.SUPPORT BON.BLUE
5130832157
Not Available
7
BUSHING STRG.SUPPORT
5431382
9999999
Not Available
8
PLATE BOLT
1060101
9999999
Not Available
9
WASHER S.S.
7555834
9999999
Not Available
10
WASHER; WAVE
7571624
9999999
Not Available
11
ARM STRG. WELD.
1823156
Not Available
12
NUT NYLOK S.S.
7542133
9999999
Not Available
13
WASHER LOCK SPECIAL
5222793
Not Available
14
BLOCKTHROTTLE CONTROL
5431396
9999999
Not Available
15
SCREW; SET; S.S.
7515115
9999999
Not Available
16
LEVER THROTTLE CONTROL
5431397
9999999
Not Available
17
PIN; RETAINING
7661628
9999999
Not Available
18
WASHER; FLAT; S.S.
7555840
9999999
Not Available
19
RING RETAINING EXT. S.S.
7710426
9999999
Not Available
20
GRIP H BAR BON.BLUE
5410638157
Not Available
21
CABLE STEERING
7080435
Not Available
22
CABLE THROTTLE
7080449
Not Available
23
BRKT RECEIVER
5431427
Not Available
24
SCREW S.S.
7512051
9999999
Not Available
25
WASHER; FLAT
7555861
9999999
Not Available
26
WASHER; FLAT; S.S.
7555837
9999999
Not Available
27
NUT HEX S.S.(10)
7542335
Not Available
28
THROTTLE CONTROL ASM.
2010122
9999999
Not Available
29
SCREW; S.S.
7516601
9999999
Not Available
30
SCREW
7516602
9999999
Not Available
31
CAPLUG
7080467
9999999
Not Available
32
WASHER FLAT SS(10)
7555855
9999999
Not Available
33
SWITCH KILL/TETHER
4110121
9999999
Not Available
34
EYE; END
7080460
9999999
Not Available
35
STOP STEERING
5222677
9999999
Not Available
36
WASHER LOCK S.S.
7552610
9999999
Not Available
37
ROD END; S.S.
7060154
9999999
Not Available
38
WASHER
1860103
9999999
Not Available
39
NUT; NYLOK; S.S.(10)
7542526
9999999
Not Available
40
NUT (10)
1860102
9999999
Not Available
41
SEAL; ROD
1860101
9999999
Not Available
42
COVER
1860105
9999999
Not Available
43
CORD; TETHER
7080478
9999999
Not Available
44
INDICATOR OILTEMP
4040030
9999999
Not Available
45
BOLT; S.S.
7512041
9999999
Not Available
46
BOLT SHOULDER
7515371
9999999
Not Available
47
BOLT(10)
7515372
9999999
Not Available
48
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
49
BOLT
7515120
9999999
Not Available
50
NUT HEX S.S.
7541931
$9,44 Unit Price incl. VAT

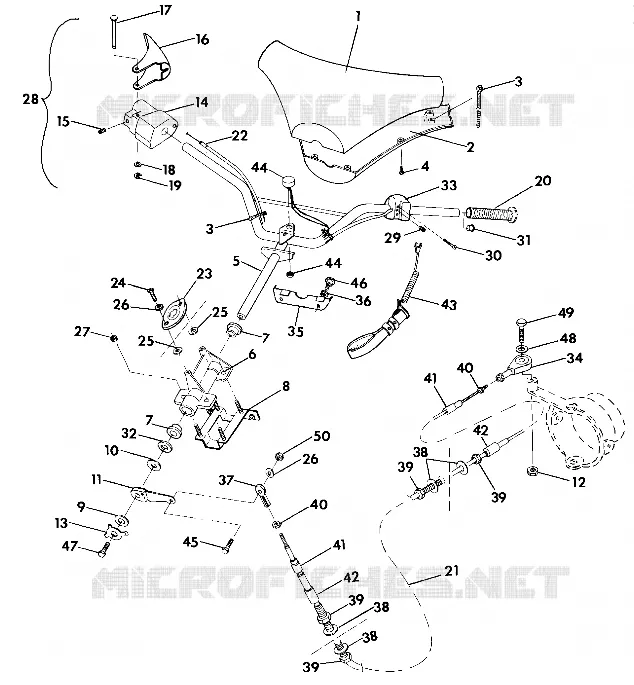

Find the detailed STEERING SL 650/B924058 (4922922292009A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
