Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 6 SEAT FULL SIZE CREW
4
Parts Catalog
ELECTRICAL, INSTRUMENTS CONTROLS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
IGNITION
ELECTRICAL, INSTRUMENTS CONTROLS
1
2
2
2
3
4
5
6
7
8
1
4 POSITION KEY SWITCH; ATV
4012166
4083619
Not Available
2
CLUSTER ASSEMBLY
3280632
$503,99 Unit Price incl. VAT
2
GUAGE CLUSTER
3280607
$598,49 Unit Price incl. VAT
2
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
3
AWD SWITCH; SERIES 10
4010601
$167,99 Unit Price incl. VAT
4
RECEPTACLE-POD MNT;12 VOLT
4015439
4012393
$68,24 Unit Price incl. VAT
5
BEZEL INSTRUMENT CLUSTER
5438945
$29,39 Unit Price incl. VAT
6
HOLE PLUG; CARLING ROCKER SWITCH
5434192
$13,64 Unit Price incl. VAT
7
DASH PANEL CONTROLS; GLOSS BLACK
5438585070
Not Available
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

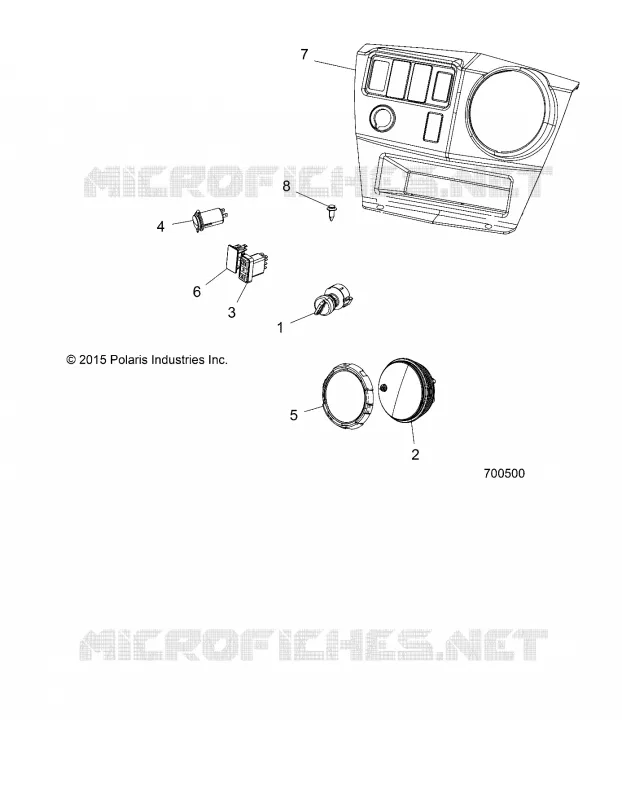

Find the detailed ELECTRICAL, INSTRUMENTS CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
