DRIVE TRAIN, CHAINCASE for POLARIS 850 AXYS INDY XC 137 from 2021

DRIVE TRAIN, CHAINCASE

1

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

2

INTERMEDIATE CHAINCASE ASSEMBLY

1333119

$390,59 Unit Price incl. VAT

3

VENT TUBE; .155 X .75; DIA

5334764

$62,99 Unit Price incl. VAT

4

CHAIN TIGHTENER ASSEMBLY

1332427

$135,44 Unit Price incl. VAT

5

WASHER-THREAD SEAL;3/8-16-UNC

7556340

$6,29 Unit Price incl. VAT

6

NUT

7547017

$10,49 Unit Price incl. VAT

7

SCR-HH-M10X1.5X70 8.8 ZOD

7519938

$36,74 Unit Price incl. VAT

8

BALL BEARING #6205

3514309

3515910

$30,23 Unit Price incl. VAT

9

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

10

SPROCKET 22 TOOTH

3221098

$73,49 Unit Price incl. VAT

10

SPROCKET 23 TOOTH

3221099

$83,99 Unit Price incl. VAT

11

CHAINCASE COVER GASKET

5814028

$52,49 Unit Price incl. VAT

12

CHAINCASE SLEEVE

5137587

$13,64 Unit Price incl. VAT

13

CHAINCASE COVER ASSEMBLY

1333118

1337284

$272,99 Unit Price incl. VAT

14

SCR-M6X1.0X30 8.8 HXFL ZTB P30

7521293

$4,19 Unit Price incl. VAT

15

BALL BEARING

3514643

$40,94 Unit Price incl. VAT

16

CHAMFERLESS SLEEVE

5140953

$47,24 Unit Price incl. VAT

17

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

18

BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM

7518760

$17,84 Unit Price incl. VAT

19

HEX HEAD SCREW; 10 MM X 1.25 MM X 20 MM

7519004

$7,34 Unit Price incl. VAT

20

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

21

SPROCKET-37T 3/4W 15 SPL PM LW

3222231

3225071

$68,24 Unit Price incl. VAT

21

SPKT 41T 15T SPL HYVO PM

3222101

3225068

$73,49 Unit Price incl. VAT

22

DRIVE CHAIN

3221112

$194,24 Unit Price incl. VAT

22

CHAIN HYVO 70 PITCH 3/4 WIDE

3221115

$262,49 Unit Price incl. VAT

23

DOWEL HOL M9X10(10)

7663007

$7,34 Unit Price incl. VAT

24

MAGNETIC PLUG

7052674

$36,74 Unit Price incl. VAT

25

O-RING 20.30 MM X 2.62 MM

5413563

$3,14 Unit Price incl. VAT

26

FUEL LINE; 3 MM X 7 MM

8450061600

Not Available

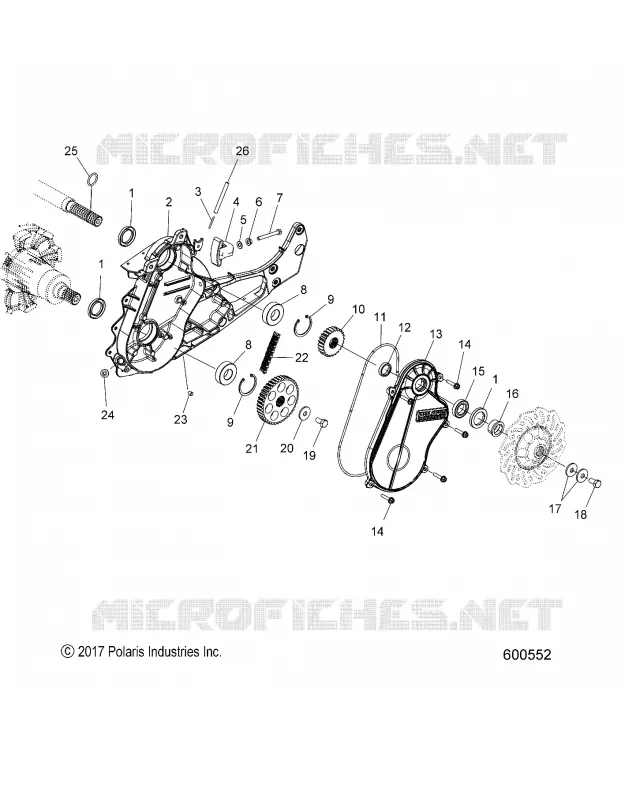

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
