CHASSIS, CHASSIS ASM. AND OVER STRUCTURE for POLARIS 550 INDY VOYAGEUR 155 from 2016

SEAT ASM. AND RACK

CHASSIS, CLUTCH GUARD AND FOOTRESTS

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE

1

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

2

BULB SEAL .375 350 CM

5521697350

Not Available

3

TUBE CAST SPACER

5632200

$26,24 Unit Price incl. VAT

4

ASM-FRAME TUBLR REAR;550

1018226

1024447

$1 186,49 Unit Price incl. VAT

5

PAD-RUBBER 1.0 X 2.50 X.13

5813729

$52,49 Unit Price incl. VAT

6

STUD PLATE ASSEMBLY

1018776

$27,29 Unit Price incl. VAT

7

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

8

PAD-5X5CM

5813593

$8,39 Unit Price incl. VAT

9

PAD-6.5X25CM

5813662

$7,34 Unit Price incl. VAT

10

ASM-TUNNEL 155 F/C SVC NAT

1020017309

Not Available

10

K-CHASSIS 155 F/C;NAT

2205953309

Not Available

11

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

12

TUBE-SUPPORT/GRIPPER RH

5138962

$503,99 Unit Price incl. VAT

12

SUPPORT AND GRIPPER TUBE; LEFT

5138961

$503,99 Unit Price incl. VAT

13

RIVET

7661637

$2,09 Unit Price incl. VAT

14

TUBULAR FRAME ASSEMBLY; FRONT; RMK

1016954

9999999

Not Available

15

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

16

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

17

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

18

BRKT-COIL MOUNT

5256520

$26,24 Unit Price incl. VAT

19

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

7521331-55

$10,49 Unit Price incl. VAT

20

RESONATOR MOUNT; UPPER

5137797

$68,24 Unit Price incl. VAT

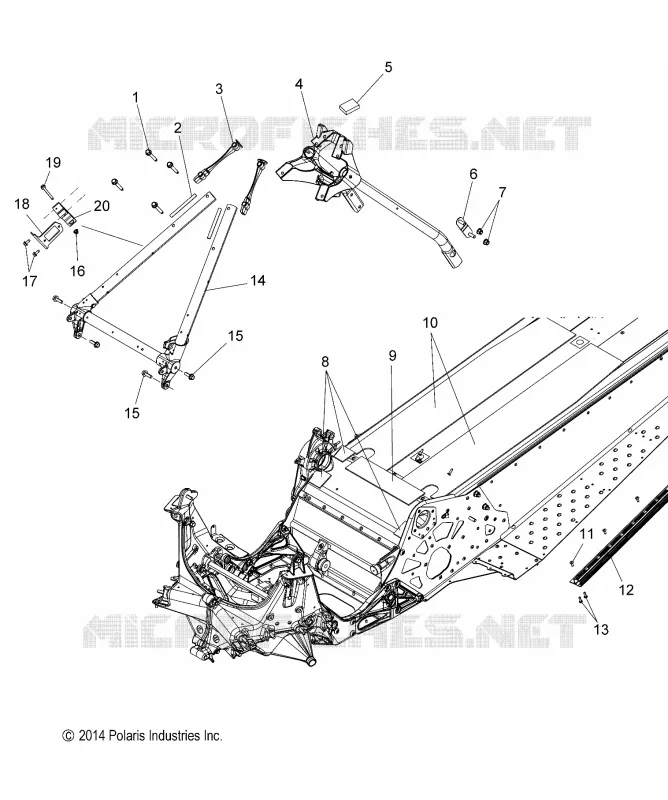

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
