Engine displacement
500
2
Year
2003
3
Trim
500 XC EDGE
4
Parts Catalog
REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
BRAKE
by
FOX SHOCK
REAR TORQUE ARM
13
13
13
14
15
16
17
18
19
20
20
20
20
20
20
21
22
23
24
24
24
25
25
25
26
27
28
29
30
31
32
33
1
WELD-REAR TORQUE ARMBLK
1541561067
Not Available
2
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
3
SCREW
7512410
7515540
$9,44 Unit Price incl. VAT
4
ARM SHAFT
5333758
9999999
Not Available
5
THRUST WASHER
7555945
$11,54 Unit Price incl. VAT
6
BUSHING
3514331
$34,64 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
11
SCREW
7517435
$22,56 Unit Price incl. VAT
12
ARM ASSEMBLY
1541461
9999999
Not Available
13
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
14
SPACER WHEEL
5132388
9999999
Not Available
15
CARRIER WHEEL ASSEMBLY
1590343
$141,74 Unit Price incl. VAT
16
WASHER THRUST
7555787
9999999
Not Available
17
TORSION SPRING SLEEVE
5431923
9999999
Not Available
18
ROLLER SPRING ADJ SQUARE
5432983
$19,94 Unit Price incl. VAT
19
PUSH ON CLIP
7080394
$4,19 Unit Price incl. VAT
20
TORSION SPRING .405 77 LEFT SIDE GS BLK
7041940067
Not Available
20
TORSION SPRING .405 77 RIGHT SIDE GS BLK
7041941067
Not Available
20
SPRING TORSION .359/77 RH BLK
7041630067
Not Available
20
SPRING TORSION .359/77 LH BLK
7041629067
Not Available
20
SPRING-TORS.375SQ/77 ;RH;BLK
7041943067
Not Available
20
SPRING-TORS.375SQ/77 LHBLK
7041942067
Not Available
21
SCREW
7517232
$36,74 Unit Price incl. VAT
22
SHAFT .740X.390X7.055 6066
5333873
9999999
Not Available
23
BOLT
7515514
$13,64 Unit Price incl. VAT
24
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
25
BUSHING .378 X .616 X 1.12
5132391
$13,64 Unit Price incl. VAT
26
ROD SHOCK
1541479067
Not Available
27
SCREW-3/8-24X3.75-HX/P-80-GR8Y
7517851
$11,54 Unit Price incl. VAT
28
BUSHING NUT; .616 X 1.12 X .875
5132390
$40,94 Unit Price incl. VAT
29
SLEEVE; .385 X .560 X 1.30
5333907
9999999
Not Available
30
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
31
SPACER .397X.562X1.250
5333904
9999999
Not Available
32
SHOCK-R/T ALUM PPS
7042129
9999999
Not Available
33
BUSHING
5010422
$18,89 Unit Price incl. VAT

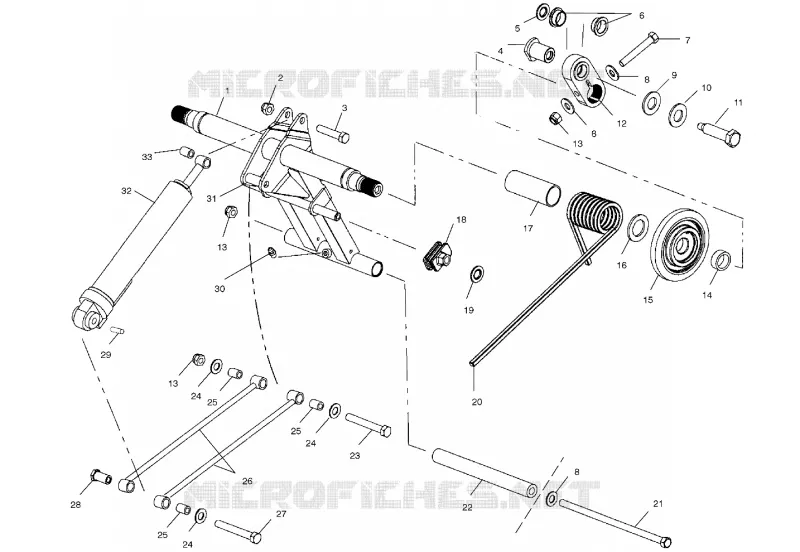

Find the detailed REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
