1
Engine displacement
750
2
Year
2006
3
Trim
750 FS / FST TOURING
4
Parts Catalog
REAR SHOCK TRACK/SPRING ASSEMBLY
5
Parts Diagram
Parts Catalog
FRONT SHOCK TRACK (FOX M-10/7043123)
by
REAR SHOCK TRACK (M-10)(7043190)

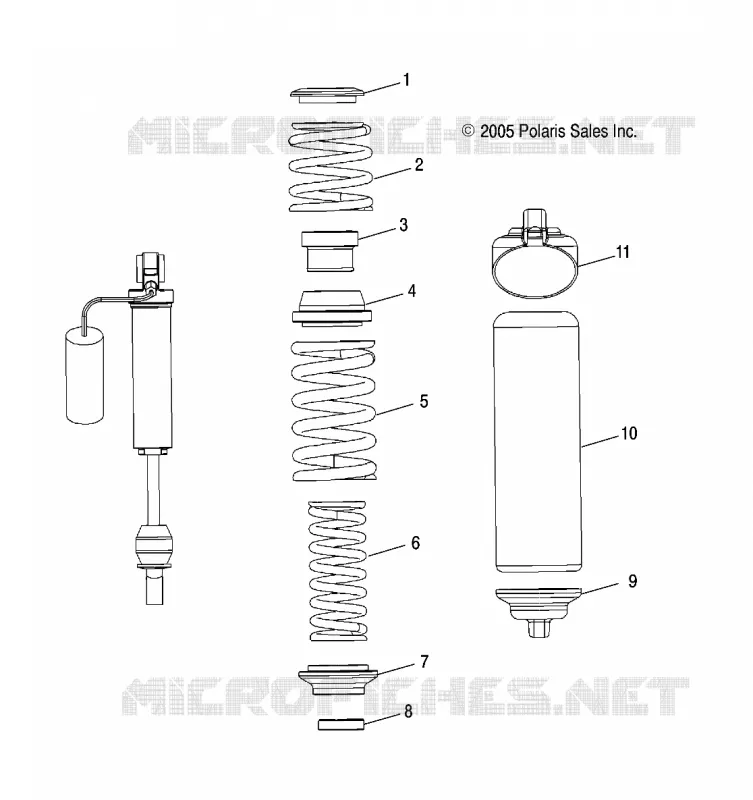

REAR SHOCK TRACK/SPRING ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
1
RETAINER-SPRING M10 RTS UPPER
5134921
9999999
Not Available
2
SPRING-COM .375R 5.20 273# BLK
7042207067
Not Available
3
BUSHING-OVERLOAD M10 RTS
5436109
9999999
Not Available
4
RETAINER-SPR M10 RTS MID .46
5135080
9999999
Not Available
5
SPRING-COM .515R 6.40 715# BLK
7042208067
Not Available
6
SPRING-COM .394R 5.46 629# BLK
7042206067
Not Available
7
RETAINER-SPRING M10 RTS LOWER
5134780
9999999
Not Available
8
COLLAR-SPRING SLOTTED
5133778
9999999
Not Available
9
CAP-SHOCK ENDM10BOTTOM
5436401
9999999
Not Available
10
COVER-SPRING NYLON M10 RTS
2683659
9999999
Not Available
11
CAP-SHOCK ENDM10TOP
5436400
9999999
Not Available

Find the detailed REAR SHOCK TRACK/SPRING ASSEMBLY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
