1
Engine displacement
500
2
Year
1998
3
Trim
BIG BOSS 500 6X6 - W98AE50A
4
Parts Catalog
BUMPER / RACKS MOUNTING
5
Parts Diagram
Parts Catalog
BODYWORK
by
REAR BED MOUNTING
BUMPER / RACKS MOUNTING
1
1
2
3
3
4
5
5
6
7
7
8
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
1
1
2
3
3
4
5
5
6
7
7
8
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
1
1
2
3
3
4
5
5
6
7
7
8
9
10
11
12
12
12
12
13
14
14
14
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
1
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
2
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
3
BOLT
7512130
$7,34 Unit Price incl. VAT
4
GUARD CLUTCH OUTER
5222860067
Not Available
5
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
6
LEVER BOX E.B.GREEN
1040291195
Not Available
7
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
PAD
5810455
$6,29 Unit Price incl. VAT
10
SCREW
7515355
9999999
Not Available
11
REFLECTOR ASSEMBLY; AMBER
2670134
$19,94 Unit Price incl. VAT
12
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
13
RACKFRT.BLK.
2670137067
Not Available
14
H/L ASM;27W;BOTT.MT.
2431017
9999999
Not Available
14
BULB H/L 27W.HOBBS
4030059
9999999
Not Available
15
BOLT
7512329
$7,34 Unit Price incl. VAT
16
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
17
PLUG; FRAME
5810467
9999999
Not Available
18
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
19
SCREW
7512126
$9,44 Unit Price incl. VAT
20
BUMPERFRONTBLK
2670190067
Not Available
21
HITCH-U-BOLT
5241224
9999999
Not Available
22
SCREW
7515399
9999999
Not Available
23
PLATE BACK MT BLK.
5211633067
Not Available
24
SCREW
7515547
9999999
Not Available
25
GUARD ROCK BLK
5242016067
Not Available
26
BOLT
7512232
$2,09 Unit Price incl. VAT
27
RIVET (10)
7661825
9999999
Not Available
28
TRIM FOOTREST
5431484
9999999
Not Available
29
FOOTPAD LH BLK.
1040274067
Not Available
29
FOOTPAD RH BLK.
1040351067
Not Available
30
MT REAR STRUT
1040293067
Not Available

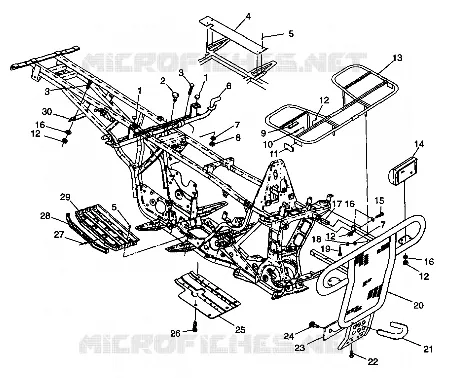

Find the detailed BUMPER / RACKS MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
