1
Engine displacement
600
2
Year
1986
3
Trim
600 - 0860757
4
Parts Catalog
CARBURETOR (TRAIL AND 400) (4910941094048A)
5
Parts Diagram
Parts Catalog
WATER PUMP (400) (4910941094043A)
by
CARBURETOR (600 AND 600 LE) (4910941094049A)
CARBURETOR (TRAIL AND 400) (4910941094048A)
-
CARB ASM.
3130373
9999999
Not Available
1
CARB ASM. Substituted by 3130395 (Incl. 2-29)(TRAIL)
3130364
Not Available
2
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130318
9999999
Not Available
5
PLATE THROTTLE
3130216
3130027
$19,94 Unit Price incl. VAT
6
E RING(10) Substituted by 3130003
3130245
Not Available
7
JET NEEDLE
3130329
9999999
Not Available
7
NEEDLE JET
3130374
9999999
Not Available
8
THROTTLE VALVE; 3.0
3130372
$104,99 Unit Price incl. VAT
9
NEEDLE JET
3130160
9999999
Not Available
9
NEEDLE JET(Q-2)
3130376
9999999
Not Available
10
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
SPRING
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
SUBSTITUTED BY 3130065
3130331
$18,89 Unit Price incl. VAT
18
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
19
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
20
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
21
FLOAT PIN
3130240
3130361
$18,89 Unit Price incl. VAT
22
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
23
FLOAT ASM. Substituted by 3130430
3130032
Not Available
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
O-RING
3130239
9999999
Not Available
26
DRAIN PLUG
3130321
$41,99 Unit Price incl. VAT
27
HEX HEAD MAIN JET
3130124
9999999
Not Available
27
JET MAIN HX.HD#220
3130125
$12,59 Unit Price incl. VAT
28
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
29
WASHER
3130014
$3,14 Unit Price incl. VAT

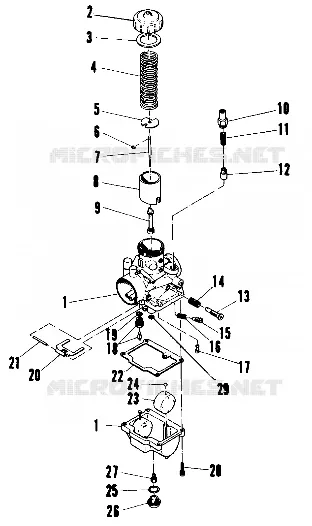

Find the detailed CARBURETOR (TRAIL AND 400) (4910941094048A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
