Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC TOURING
4
Parts Catalog
OIL TANK AIR BOX
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM
by
CRANKCASE
OIL TANK AIR BOX
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
16
17
18
19
19
20
20
21
21
21
21
22
23
23
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
OIL LEVEL SENSOR WITH CONNECTING ROD
4040040
$141,74 Unit Price incl. VAT
2
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
3
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
4
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
5
BOLT
7512276
$9,44 Unit Price incl. VAT
6
FUEL LINE; 1/4 ID
84500031525
Not Available
7
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
8
CONDUIT CONVOLUTED
4010051
9999999
Not Available
9
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
10
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
11
BRKT OILTANK COINED
5241334
9999999
Not Available
12
RIVET
7661637
$2,09 Unit Price incl. VAT
13
TANK OIL
5431437
9999999
Not Available
14
NUT
7670096
$3,14 Unit Price incl. VAT
15
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
16
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
17
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SCREW(10)
7512222
9999999
Not Available
20
SCREW
7512279
$1,56 Unit Price incl. VAT
21
WASHER
7552604
$3,14 Unit Price incl. VAT
22
BRKT SLNCR/REMOTE FLR BLK
5242767067
Not Available
23
WELL NUT
7541923
$10,49 Unit Price incl. VAT
24
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
25
AIR SILENCER PLATE
5850075
9999999
Not Available
26
FITTING
7052077
9999999
Not Available
27
BOOT
5410271
9999999
Not Available
28
DRILLED INTAKE SILENCER
5434075
9999999
Not Available
29
BRACKET; SILENCER
5211274
$18,89 Unit Price incl. VAT
30
BAFFLE ASSEMBLY
1253102
$120,74 Unit Price incl. VAT
31
DECAL CAUTION
7075351
9999999
Not Available
32
Decal Adjustable Driven Clutch
7073820
Not Available
33
AIR BOX CLIP
7670055
$11,54 Unit Price incl. VAT
34
DECAL; GREASING
7073426
9999999
Not Available
35
FOAM AIRBOX CHIMNEY HYB.
5811628
$68,24 Unit Price incl. VAT
36
CVR AIR SILENCER DRILLED
5432939
9999999
Not Available
37
DECAL COOL.SYSTEM [No Longer Available]
7075359
Not Available

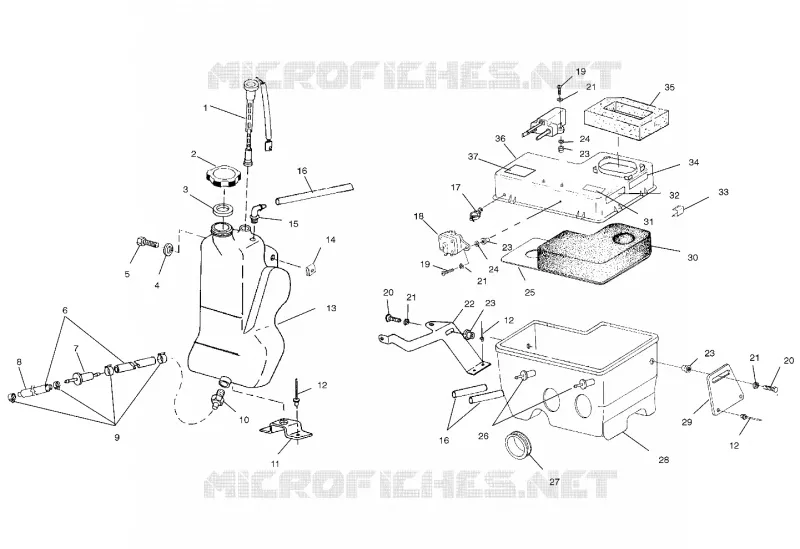

Find the detailed OIL TANK AIR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
