1
Engine displacement
500
2
Year
2002
3
Trim
500 CLASSIC TOURING
4
Parts Catalog
NOSEPAN
5
Parts Diagram
Parts Catalog
by
NOSEPAN
NOSEPAN
1
2
2
3
3
4
4
5
6
6
7
7
8
9
9
10
11
11
12
13
14
14
15
15
16
16
17
18
19
20
20
20
21
22
23
1
BRACE HINGE; MEDIUM GLOSS BLACK
1012783067
Not Available
2
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
3
BOLT
7512276
$9,44 Unit Price incl. VAT
4
POP RIVET
7621402
$2,09 Unit Price incl. VAT
5
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
6
GUIDE HOOD RH
5243006
9999999
Not Available
6
GUIDE HOOD LH
5243005
9999999
Not Available
7
RIVET (50)
7621601
1015421
$3,66 Unit Price incl. VAT
8
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
9
PAN BRACE; RIGHT
5220523067
Not Available
9
PAN BRACE LEFT
5220522067
Not Available
10
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
11
CAP BUMPER LH BLK.
5432887
9999999
Not Available
11
CAP BUMPER RH BLK.
5432888
9999999
Not Available
12
SCREW(10)
7515166
$6,29 Unit Price incl. VAT
13
HOLE PLUG
7080416
$12,59 Unit Price incl. VAT
14
EXTRUSION-BUMPER FORMED LH BLK
5243460067
Not Available
14
EXTRUSION-BUMPER FORMED RH BLK
5243461067
Not Available
15
ROUTING CLIP
7670109
$4,19 Unit Price incl. VAT
16
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
17
PAN BRACE; LOWER; MEDIUM GLOSS BLACK
5242575067
Not Available
18
RIVET(10)
7621463
7621429
$2,09 Unit Price incl. VAT
19
FRONT BUMPER; GLOSS BLACK
5432891070
Not Available
20
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
21
BOLT KIT
7515175
$7,34 Unit Price incl. VAT
22
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
23
BRACE PAN UPPER
5243820
9999999
Not Available

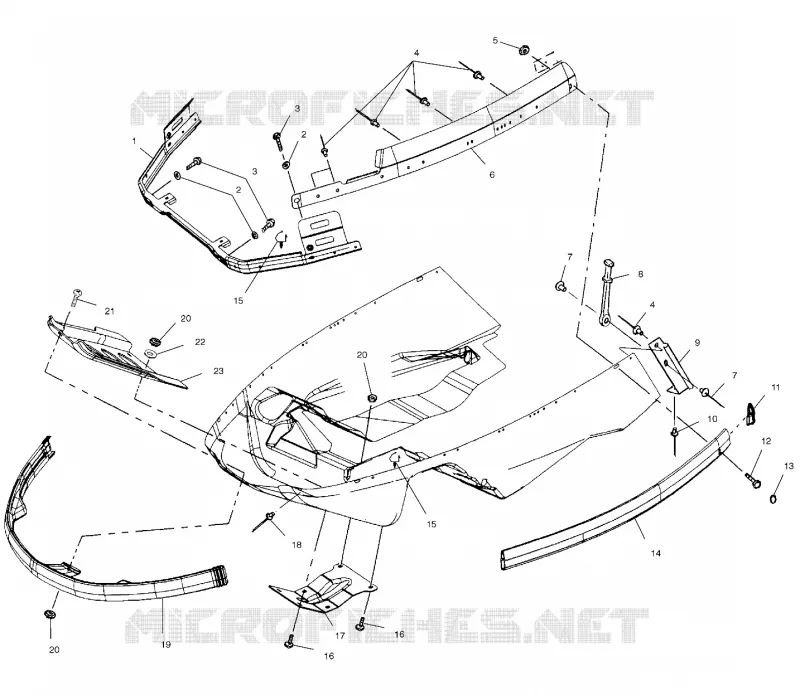

Find the detailed NOSEPAN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
