1
Engine displacement
900
2
Year
2019
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
HOOD FRONT FACSIA
5
Parts Diagram
Parts Catalog
FUEL TANK
by
SEAT, 60/40 FULL BACK
HOOD FRONT FACSIA
1
2
3
4
5
5
5
6
6
6
7
7
7
8
9
10
11
12
12
12
12
12
12
12
12
12
13
14
14
14
14
14
14
15
15
16
17
1
FENDER FLARE; FRONT; LEFT; GLOSS BLACK
5439011070
Not Available
2
FENDER FLARE; FRONT; RIGHT; GLOSS BLACK
5439012070
Not Available
3
BUMPER SCREEN; UPPER; GLOSS BLACK
5439016070
Not Available
4
FRONT FASCIA; GLOSS BLACK
5439018070
Not Available
5
FENDER FRONT LEFT POLARIS PURSUIT CAMO
5450083587
Not Available
5
FENDER; FRONT; LEFT SIDE; SOLAR RED
5439009342
Not Available
5
FENDER; FRONT; LEFT SIDE; SB GRN MTLC
5439009498
Not Available
6
FENDER; FRONT; RIGHT SIDE; SOLAR RED
5439010342
Not Available
6
FENDER FRT RHT SIDE POLARIS PURSUIT CAMO
5450084587
Not Available
6
RIGHT HAND FRONT FENDER; SB GRN MTLC
5439010498
Not Available
7
CENTER ACCESS HOOD; SOLAR RED
5439023342
Not Available
7
CENTER ACCESS HOOD; SB GRN MTLC
5439023498
Not Available
7
CENTER ACCESS HOOD; POLARIS PURSUIT CAMO
5450085587
Not Available
8
HOOD LINER
5439025070
Not Available
9
BUMPER BRACKET FRT UPR LEFT GALVANIZED
5258206
9999999
Not Available
10
BUMPER BRACKET FRT UPR RIGHT GALVANIZED
5258207
9999999
Not Available
11
TURN LATCH; 1/4
7081730
$10,49 Unit Price incl. VAT
12
BOLT
7519650
$7,34 Unit Price incl. VAT
13
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
14
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
15
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
16
WASHER
7555919
$7,34 Unit Price incl. VAT
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

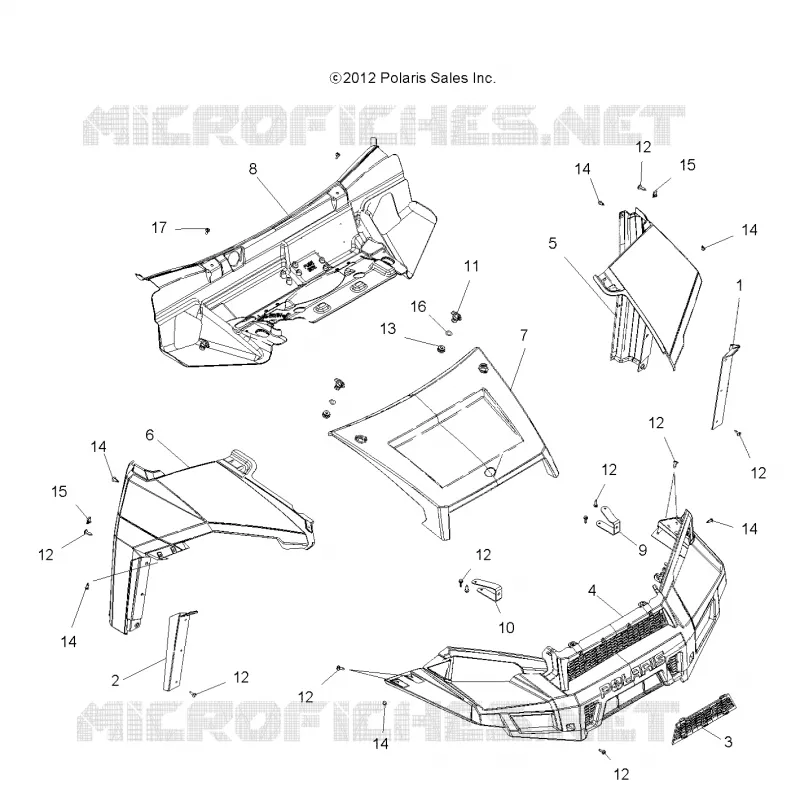

Find the detailed HOOD FRONT FACSIA POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
