1
Engine displacement
570
2
Year
2016
3
Trim
RGR 570 EFI CREW
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ELECTRICAL, REGULATOR AND RELAY
by
CYLINDER
CRANKCASE
1
CRANKCASE KIT
2205248
$1 994,99 Unit Price incl. VAT
2
BALL BEARING; 30 X 62 X 16
3514426
$34,64 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
5
BEARING RETAINER PLATE
5256603
$52,49 Unit Price incl. VAT
6
BEARING SPACER
5137838
$73,49 Unit Price incl. VAT
7
EXPANSION PLUG; 19 MM
7051530
$15,74 Unit Price incl. VAT
8
SCREW
7517598
$19,94 Unit Price incl. VAT
9
DWL-HOL M8X10
7661977
$15,74 Unit Price incl. VAT
10
RING-SNAP 80X2.5
7710660
$7,34 Unit Price incl. VAT
11
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
12
SCREW 8 MM X 1.25 MM X 90 MM
7520104
$10,49 Unit Price incl. VAT
13
CRANKSHAFT SEAL
3610171
$89,24 Unit Price incl. VAT
14
BALL BEARING; 40 X 80 X 18
3514389
3515831
$55,43 Unit Price incl. VAT
15
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT

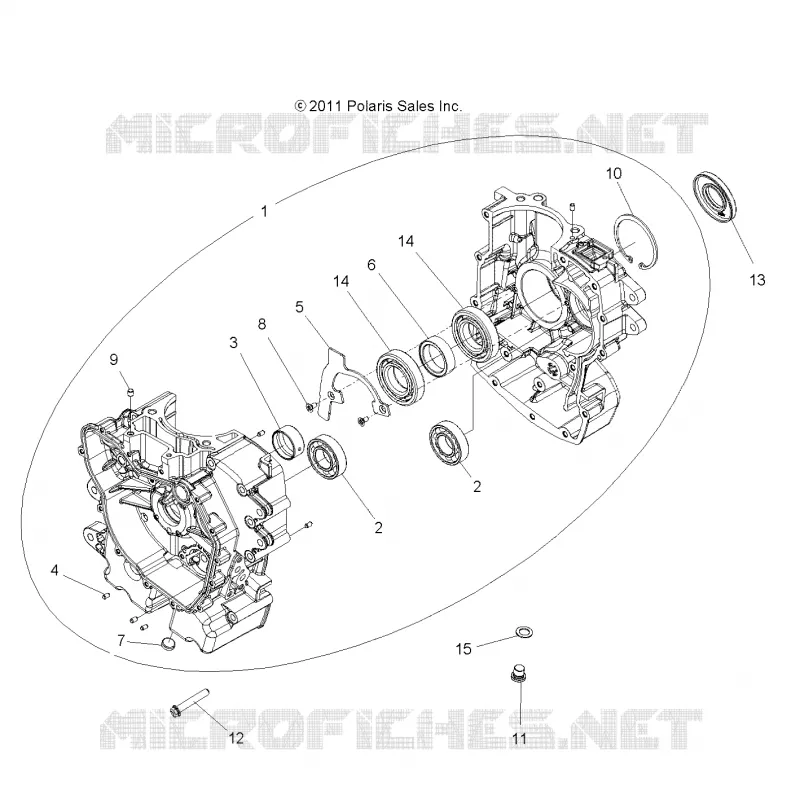

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
