Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 X2 EPS TRACTOR
4
Parts Catalog
REAR BOX FRAME AND PIVOT
5

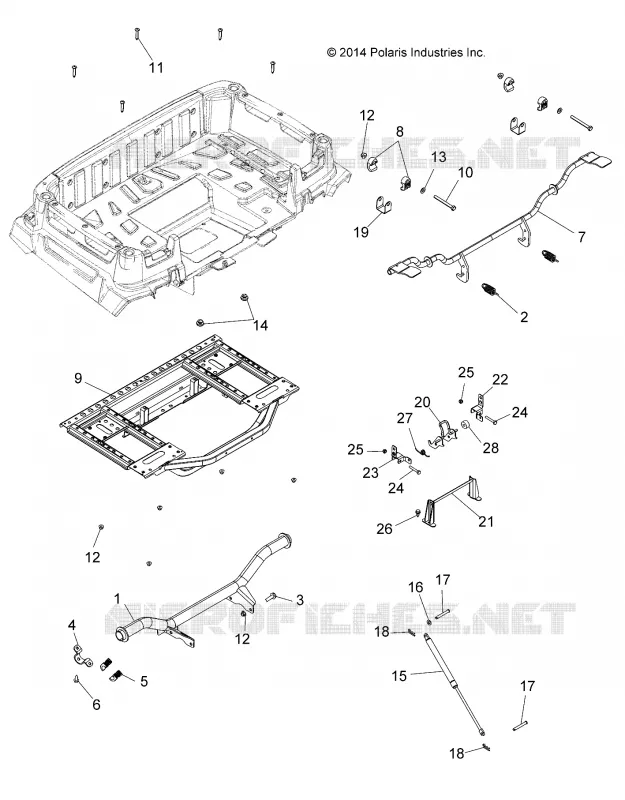

Parts Diagram
Parts Catalog
BODY, FRONT CAB & SIDE PANELS
by
RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP
REAR BOX FRAME AND PIVOT
1
2
3
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
24
25
25
26
27
28
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
5
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
8
8
8
8
9
9
9
9
9
1
PIVOT BOX; REAR; BLACK
1020018329
Not Available
2
SPRING
7041687
$12,59 Unit Price incl. VAT
3
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
4
BUSHING STRAP BRACKET
5262582
$52,49 Unit Price incl. VAT
5
STEERING BUSHING; UPPER
5438904
$9,44 Unit Price incl. VAT
6
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
7
WELD-LATCH BOX REAR M.BLK
1020857458
Not Available
8
BOX BUSHING; LATCH
5434226
$7,34 Unit Price incl. VAT
9
BOX FRAME WELD; BLACK
1020750329
Not Available
10
SCREW
7515346
$10,49 Unit Price incl. VAT
11
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
12
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
13
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
14
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
15
SHOCK-DUMP BOX
7044142
7046193
$89,24 Unit Price incl. VAT
16
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
17
PIN-CLEVIS 5/16X1 1/2 (10)
7661163
$7,34 Unit Price incl. VAT
18
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
19
BRKT-LATCH BUSHING LINER
5259801
$12,59 Unit Price incl. VAT
20
WELD-ROD PASS SEAT M.BLK
1016335458
Not Available
21
WELD-LATCH M.BLK
1020806458
Not Available
22
SEAT PIVOT BRACKET; LEFT
5250563
$19,94 Unit Price incl. VAT
23
SEAT PIVOT BRACKET; RIGHT
5250564
$19,94 Unit Price incl. VAT
24
BOLT
7512130
$7,34 Unit Price incl. VAT
25
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
26
BOLT
7512232
$2,09 Unit Price incl. VAT
27
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
28
SPACER
7556091
$7,34 Unit Price incl. VAT
