1
Engine displacement
700
2
Year
1998
3
Trim
700 XCR - 0985678
4
Parts Catalog
SEAT GAS TANK 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311A006)
5
Parts Diagram
Parts Catalog
TUNNEL 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311A005)
by
NOSEPAN 700 XCR 0985678(A) and EUROPEAN 700 XCR E985678 (4943114311A007)
SEAT GAS TANK 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311A006)
1
1
2
2
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
1
1
2
2
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
1
1
2
2
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
14
14
15
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
1
COVER ASMSEAT
2682212
9999999
Not Available
1
SEAT ASM. (Incl. 4-20 23-30 33 36)
2682297
Not Available
2
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
2
CAP FUELTANK W/GASKET
2511226
9999999
Not Available
3
GROMMET; FUEL TANK
5410815
9999999
Not Available
4
GROMMET RELATCH 1 BOTT.
7080550
9999999
Not Available
5
GROMMET RELATCH 1 TOP
7080549
9999999
Not Available
6
RIVET(10)
7621337
9999999
Not Available
7
TWISTLOCK RELATCH 1 IN W/HOLE
7080548
9999999
Not Available
8
NUT
7546908
9999999
Not Available
9
REFLECTOR CTR SEAT
5432008
9999999
Not Available
10
SCREW SELF-TAP
7522004
9999999
Not Available
11
BRKT;SEAT MT;BLK.
1012391067
Not Available
12
WASHER
7555904
$1,56 Unit Price incl. VAT
13
RIVET
7621433
$2,09 Unit Price incl. VAT
14
HOUSING LH LENS
5432002
9999999
Not Available
14
HOUSING RH LENS
5432003
9999999
Not Available
15
BULB
4030045
9999999
Not Available
16
LENS RH
5432032
9999999
Not Available
16
LENS LH
5432031
9999999
Not Available
17
SCREW(10)
7512054
$4,19 Unit Price incl. VAT
18
BULB T/L.
4032084
9999999
Not Available
19
SCREW
7511954
9999999
Not Available
20
NUT WELL
7541901
9999999
Not Available
21
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
22
BOLT
7512232
$2,09 Unit Price incl. VAT
23
HARNESS T/L 121 (SCULPT)
2460541
9999999
Not Available
24
PICKUP;FUEL;W/STRAINER
7052081
9999999
Not Available
25
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
26
FUEL LINE; 1/4 ID
84500031525
Not Available
27
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
28
MTG.FLANGE FUELTANK
5211308
9999999
Not Available
29
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
30
FITTING OUT 90 DEG DOUBLE
7052143
9999999
Not Available
31
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
32
FUEL LINE; 5 FT.
8450045153
Not Available
33
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
34
SPRING PROTECT.VENTHOSE
7041605
Not Available
35
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
36
CABLE TANK RETENTION
7080559
9999999
Not Available
37
HDWE.PKG SEND.UNIT
2410012
Not Available
38
SENDER FUEL-LEVEL W/GASKET
3280227
9999999
Not Available

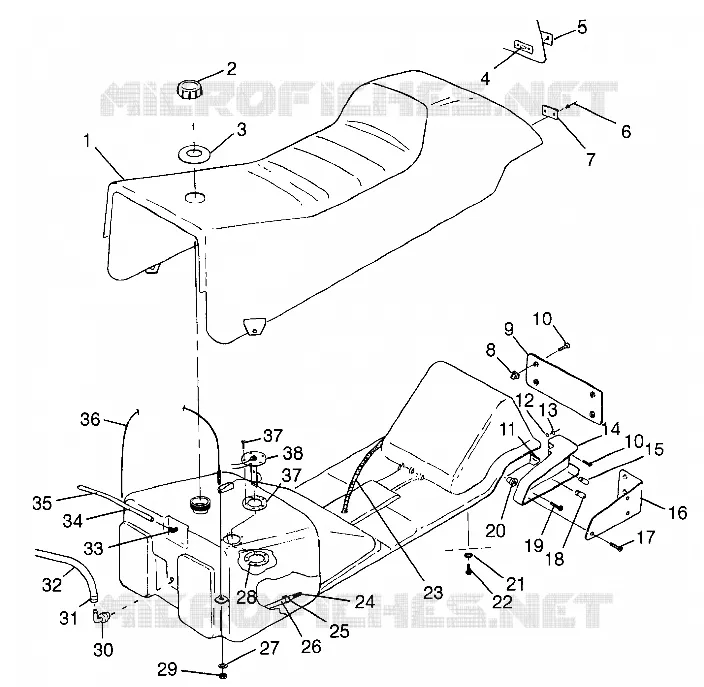

Find the detailed SEAT GAS TANK 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311A006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
