FRONT WISHBONES for POLARIS 550 INDY ADVENTURE 144 from 2023

FRONT WISHBONES

1

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

2

PIVOT SHAFT

5141028

$62,99 Unit Price incl. VAT

3

PIVOT BUSHING

5438792

$4,19 Unit Price incl. VAT

4

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

5

CONTROL ARM WELD; UPPER; LEFT

1823809067

Not Available

5

CONTROL ARM WELD; UPPER; RIGHT

1823810067

Not Available

6

RING-RET INT 1.125

7710642

$4,19 Unit Price incl. VAT

7

SPHERICAL CONTROL ARM BEARING UPR 31 MM

7061179

$47,24 Unit Price incl. VAT

8

WSHR-M12X25X1.6 THRU HARD ZOD

7556994

$6,29 Unit Price incl. VAT

9

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

10

SKI PIVOT BUSHING

5438460

$27,29 Unit Price incl. VAT

11

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

12

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

13

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

14

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

15

SPHERICAL BEARING KIT; 10 MM

2204229

$54,59 Unit Price incl. VAT

16

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

17

CONTROL ARM; LOWER; RIGHT SIDE; GS BLK

1823806067

Not Available

17

CONTROL ARM WELD; LOWER; LEFT; GS BLK

1823805067

Not Available

18

SHAFT-PIVOT LCA FRT

5141029

$62,99 Unit Price incl. VAT

19

SPINDLE ASSEMBLY; F/C; LEFT

1823875

$388,49 Unit Price incl. VAT

19

ASM-SPINDLE F/C RH

1823876

$388,49 Unit Price incl. VAT

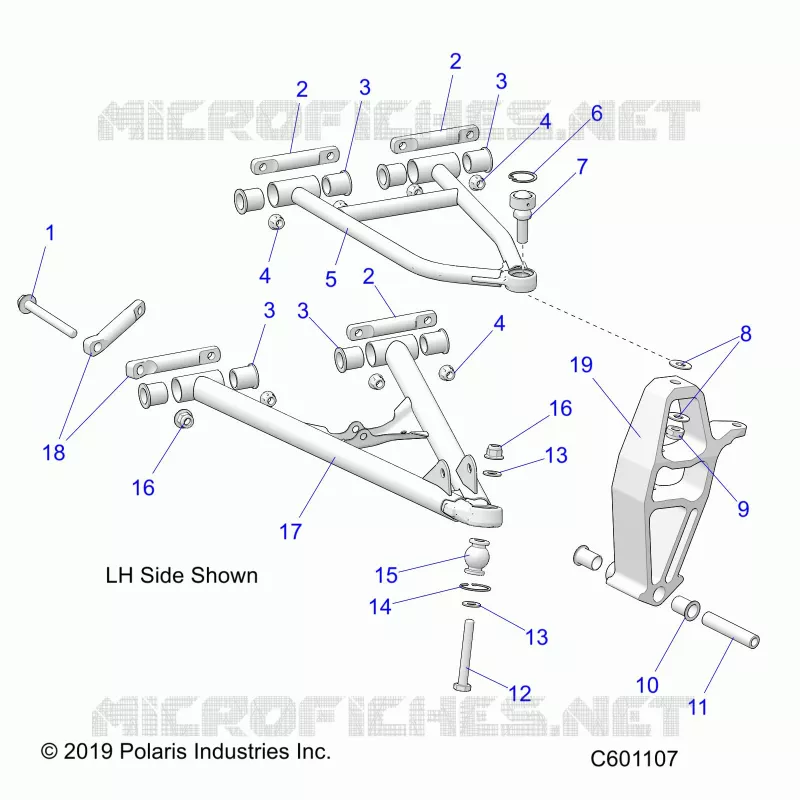

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
