1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY ADVENTURE 137
4
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
by
BUMPER, REAR
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
16
16
16
16
16
16
16
16
16
16
17
18
19
20
21
22
1
ASM-FRAME TUBULAR FRONT ALUM
1024164
$241,49 Unit Price incl. VAT
2
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
3
SCR-HXFL-M6X1X60 10.9 ZOD P30
7520723
$7,34 Unit Price incl. VAT
4
CAST TUBE SHIM; 31.76 DIA
5633083
$12,59 Unit Price incl. VAT
5
CAST TUBE SPACER; 27.00; DIA
5633122
$16,79 Unit Price incl. VAT
6
ASM-TUBE FRAME REAR
1025156
$1 238,99 Unit Price incl. VAT
7
ASM-REGULATOR MOUNT
1024479
$68,24 Unit Price incl. VAT
8
WELD-CROSS BRACE BLK
1026865
1027787
$120,74 Unit Price incl. VAT
9
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT
10
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
11
BRACE TUBE; LEFT; BLACK
5337391329
Not Available
12
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
13
ASM-STUD PLATE 5MM
1023672
$23,09 Unit Price incl. VAT
14
WSHR-FL 5.5X1.0
7556071
$9,44 Unit Price incl. VAT
15
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
16
ASM-TUNNEL 650/850 137 POLBLUE
1026715751
Not Available
16
ASM-CHASSIS 650/850 137 POLBLU
1027465751
Not Available
16
ASM-TUNNEL 650/850 137 NAT
1026715309
Not Available
16
ASM-TUNNEL 650/850 137 ORGBRST
1026715647
Not Available
16
ASM-CHASSIS 650/850 137 BLK
1027465067
Not Available
16
ASM-TUNNEL 650/850 137 INDYRED
1026715293
Not Available
16
ASM-CHASSIS 650/850 137 NAT
1027465309
Not Available
16
ASM-TUNNEL 650/850 137 BLK
1026715067
Not Available
16
ASM-CHASSIS 650/850 137 RED
1027465293
Not Available
16
ASM-CHASSIS 650/850 137 ORGBST
1027465647
Not Available
17
PAD-2.5 X2.5
5814187
$8,39 Unit Price incl. VAT
18
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
19
RIVET
7621472
$2,09 Unit Price incl. VAT
20
PAD; 40 X 63.5
5814353
$18,89 Unit Price incl. VAT
21
MOUNT-LOAD CENTER
5454789
$18,89 Unit Price incl. VAT
22
BRKT-LOAD CENTER
5265340
$9,44 Unit Price incl. VAT

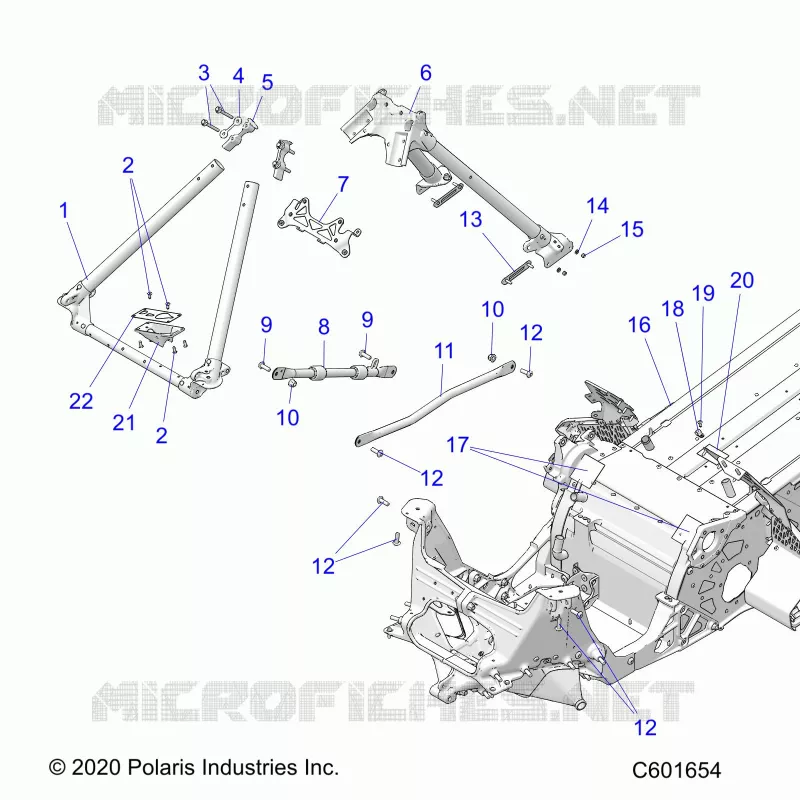

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
