Parts Catalog
CARBURETOR INDY LITE (4919311931038A)
5
Parts Diagram
Parts Catalog
CARBURETOR STAR LITE (4919311931037A)
by
CHASSIS AND SEAT INDY LITE AND STAR LITE (4918591859001A)
CARBURETOR INDY LITE (4919311931038A)
1
CARBURETOR (Incl. 2-31)
3130349
Not Available
2
TOP MIX CHAMBER
3130060
9999999
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
THROTTLE SPRING
3130354
9999999
Not Available
5
THROTTLE PLATE
3130002
9999999
Not Available
6
E RING
3130230
3130508
$12,59 Unit Price incl. VAT
7
NEEDLE-JET (5DP7-2)
3130356
3130155
$52,49 Unit Price incl. VAT
8
VALVE THROTTLE (3.0)
3130323
Not Available
9
JET NEEDLE (0-8)
3130035
Not Available
10
CAP; PLUNGER
3130359
9999999
Not Available
11
PLUNGER ASM.
3130440
3130328
$68,24 Unit Price incl. VAT
12
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130324
9999999
Not Available
14
SPRING
3130010
$18,89 Unit Price incl. VAT
15
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
JET PILOT #35(10)
3130066
9999999
Not Available
18
SETTER JET NEEDLE Substituted by 3130283
3130167
Not Available
19
WASHER
3130014
$3,14 Unit Price incl. VAT
20
O RING
3130259
3130015
Not Available
21
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
22
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
23
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
24
PIN FLOAT
3130043
9999999
Not Available
25
SUBSTITUTED BY 3130020
3130438
$31,49 Unit Price incl. VAT
26
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
27
SUBSTITUTED BY 3130237
3130431
$8,39 Unit Price incl. VAT
28
BOLT BANJO
3130210
9999999
Not Available
29
WASHER Substituted by 3130024
3130185
Not Available
30
JET MAIN RD.HD#160 [No Longer Available]
3130094
Not Available
31
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT

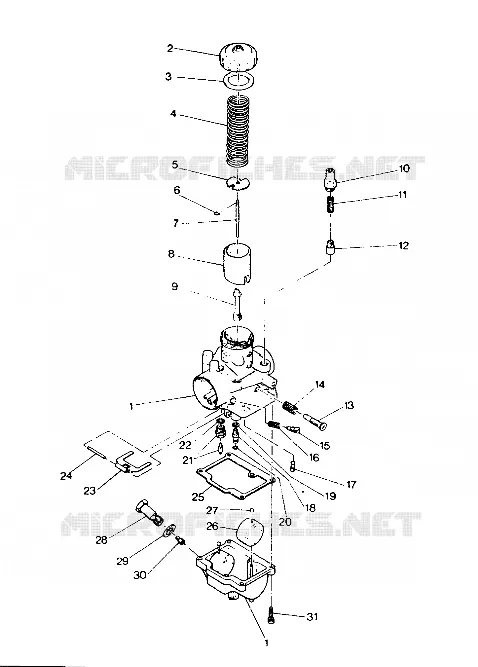

Find the detailed CARBURETOR INDY LITE (4919311931038A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
