COOLING SYSTEM for POLARIS A04CH50AA SPORTSMAN 500 - A04CH50AA/AC/AE/AG from 2004

COOLING SYSTEM

1

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

2

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

3

REMOTE COOLANT FILTER

5433364

$73,49 Unit Price incl. VAT

4

BRKT-REMOTE COOLANT FILL PLTD

5243505

9999999

Not Available

5

RIVET

7661637

$2,09 Unit Price incl. VAT

6

FLEXGUARD-PLASTIC GUARD

5433948

9999999

Not Available

7

UPPER ENGINE HOSE

5411783

$125,99 Unit Price incl. VAT

8

CLAMP-ROTO SPRING 1"

7080827

9999999

Not Available

9

BOLT

7512232

$2,09 Unit Price incl. VAT

10

FILLER NECK HOSE

5411632

9999999

Not Available

11

CLAMP-ROTO CLIP

7080826

9999999

Not Available

12

SCREW

7517659

9999999

Not Available

13

FAN AND MOTOR ASSEMBLY; SPAL

2410123

$289,79 Unit Price incl. VAT

14

CLIP U

7670111

9999999

Not Available

15

NUTSERT HEX

7547069

$7,34 Unit Price incl. VAT

16

MOUNT; RUBBER

3110032

9999999

Not Available

17

MOUNT SPACER

5020572

9999999

Not Available

18

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

19

SHROUD-FAN

5433059

9999999

Not Available

20

SCREW

7512084

$2,09 Unit Price incl. VAT

21

THERMAL HARNESS SENSOR

4010161

9999999

Not Available

22

RADIATOR

1240045

9999999

Not Available

23

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

24

BOLT

7512240

9999999

Not Available

25

VALVE-PLASTIC DRAIN

7052296

9999999

Not Available

26

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

27

RADIATOR BRACKET; LOWER; GS BLK

5243503067

Not Available

28

SCREW

7517386

$2,09 Unit Price incl. VAT

29

STRAP-PANDUIT PANEL TIE

7080890

9999999

Not Available

30

ENGINE HOSE; LOWER

5411782

9999999

Not Available

31

PLASTIC HOSEGUARD 18

5521550

9999999

Not Available

32

CLAMP-HOSE 1.312 VINYL COATED

7080851

9999999

Not Available

33

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

34

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

35

GASKET

5810279

$4,19 Unit Price incl. VAT

36

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

37

TANK; SURGE

5431673

5436936

$152,24 Unit Price incl. VAT

38

FUEL LINE; 1/4 ID

84500031525

Not Available

39

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

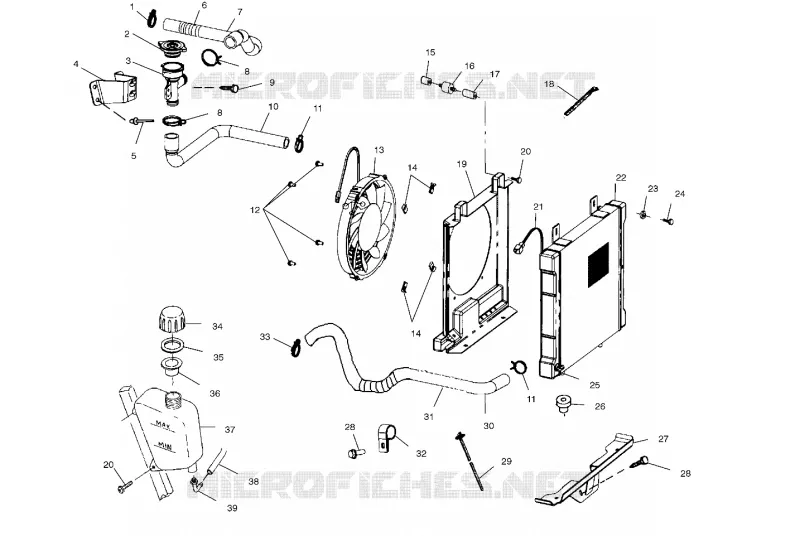

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
