1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EPS EU
4
Parts Catalog
FRONT CAB AND SIDE PANELS
5
Parts Diagram
Parts Catalog
FRONT BUMPER AND MOUNTING
by
FUEL TANK ASM.
FRONT CAB AND SIDE PANELS
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
1
ASM-CAB FR;EU;2 OC;I.RED
2635675293
Not Available
1
ASM-CAB FR;EU;2 OC;S.B.GREEN
2635675498
Not Available
2
SIDE PANEL; LEFT; INDY RED
5450521293
Not Available
2
SIDE PANEL; LEFT
5450521498
Not Available
3
COVER; FRONT; SAGEBRUSH GREEN METALLIC
5439069498
Not Available
3
COVER; FRONT; INDY RED
5439069293
Not Available
4
SHIELD PANEL ASSEMBLY; RIGHT
2636441498
Not Available
4
PANEL/SHIELD ASSEMBLY; RIGHT; INDY RED
2636441293
Not Available
5
BOLT
7512232
$2,09 Unit Price incl. VAT
6
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
7
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
8
PLUG MOUNT BRACKET
5258497
$10,49 Unit Price incl. VAT
9
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
10
SCREW
7515399
9999999
Not Available
11
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
12
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
13
FLAT WASHER
7555960
$7,34 Unit Price incl. VAT
14
BULB SEAL .375 350 CM
5521697350
Not Available
15
COMPARTMENT PLUG
5412981
5418084
$6,29 Unit Price incl. VAT

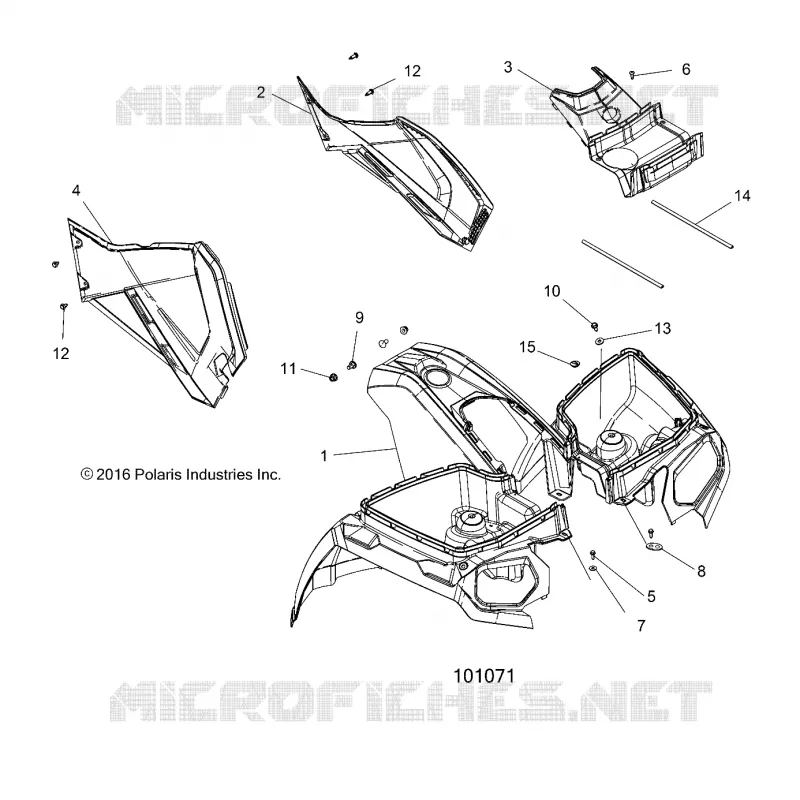

Find the detailed FRONT CAB AND SIDE PANELS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 570 EPS EU

BODY, CLUTCH COVER

BODY, CLUTCH COVER

for SPORTSMAN 570 EPS EU from 2018

REAR BODYWORK CAB, SEAT AND FOOTWELLS

REAR BODYWORK CAB, SEAT AND FOOTWELLS

for SPORTSMAN 570 EPS EU from 2018

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for SPORTSMAN 570 EPS EU from 2018

CRANKCASE

CRANKCASE

for SPORTSMAN 570 EPS EU from 2018

CYLINDER

CYLINDER

for SPORTSMAN 570 EPS EU from 2018

OIL PUMP

OIL PUMP

for SPORTSMAN 570 EPS EU from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for SPORTSMAN 570 EPS EU from 2018

REFERENCE, OWNERS MANUAL

REFERENCE, OWNERS MANUAL

for SPORTSMAN 570 EPS EU from 2018

POWER STEERING EPS

POWER STEERING EPS

for SPORTSMAN 570 EPS EU from 2018

BRAKES, BRAKE FRONT BRAKE CALIPER

BRAKES, BRAKE FRONT BRAKE CALIPER

for SPORTSMAN 570 EPS EU from 2018

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

for SPORTSMAN 570 EPS EU from 2018

REAR SUSPENSION

REAR SUSPENSION

for SPORTSMAN 570 EPS EU from 2018

CONTROLS, THROTTLE ASSEMBLY, THROTTLE LEVER KIT

CONTROLS, THROTTLE ASSEMBLY, THROTTLE LEVER KIT

for SPORTSMAN 570 EPS EU from 2018

STORAGE, FRONT

STORAGE, FRONT

for SPORTSMAN 570 EPS EU from 2018

CHASSIS, FRAME

CHASSIS, FRAME

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, SWITCHES, SENSORS AND ECM

ELECTRICAL, SWITCHES, SENSORS AND ECM

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, TAILLAMPS

ELECTRICAL, TAILLAMPS

for SPORTSMAN 570 EPS EU from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN 570 EPS EU from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for SPORTSMAN 570 EPS EU from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for SPORTSMAN 570 EPS EU from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for SPORTSMAN 570 EPS EU from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for SPORTSMAN 570 EPS EU from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for SPORTSMAN 570 EPS EU from 2018

FRONT BRAKE BRAKE LINES

FRONT BRAKE BRAKE LINES

for SPORTSMAN 570 EPS EU from 2018

FRONT BRAKE CALIPER MOUNTING

FRONT BRAKE CALIPER MOUNTING

for SPORTSMAN 570 EPS EU from 2018

BRAKES, REAR BRAKE LINES

BRAKES, REAR BRAKE LINES

for SPORTSMAN 570 EPS EU from 2018

BRAKES, VALVE SYSTEM

BRAKES, VALVE SYSTEM

for SPORTSMAN 570 EPS EU from 2018

BODYWORK

BODYWORK

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, HORN AND LICENSE PLATE LIGHT

ELECTRICAL, HORN AND LICENSE PLATE LIGHT

for SPORTSMAN 570 EPS EU from 2018

DECALS

DECALS

for SPORTSMAN 570 EPS EU from 2018

MIRRORSS

MIRRORSS

for SPORTSMAN 570 EPS EU from 2018

REAR BODYWORK RACK AND HAND GRIPS

REAR BODYWORK RACK AND HAND GRIPS

for SPORTSMAN 570 EPS EU from 2018

BODY, STORAGE BOX, REAR

BODY, STORAGE BOX, REAR

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, GAUGES AND INDICATORS

ELECTRICAL, GAUGES AND INDICATORS

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

for SPORTSMAN 570 EPS EU from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for SPORTSMAN 570 EPS EU from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for SPORTSMAN 570 EPS EU from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for SPORTSMAN 570 EPS EU from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for SPORTSMAN 570 EPS EU from 2018

STARTER DRIVE

STARTER DRIVE

for SPORTSMAN 570 EPS EU from 2018

STEERING, CONTROLS, THROTTLE ASM.

STEERING, CONTROLS, THROTTLE ASM.

for SPORTSMAN 570 EPS EU from 2018

STEERING, STEERING POST

STEERING, STEERING POST

for SPORTSMAN 570 EPS EU from 2018

BRAKES, BRAKE REAR CALIPER

BRAKES, BRAKE REAR CALIPER

for SPORTSMAN 570 EPS EU from 2018

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

for SPORTSMAN 570 EPS EU from 2018

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 570 EPS EU from 2018

FRONT BUMPER AND MOUNTING

FRONT BUMPER AND MOUNTING

for SPORTSMAN 570 EPS EU from 2018

FRONT CAB AND SIDE PANELS

FRONT CAB AND SIDE PANELS

for SPORTSMAN 570 EPS EU from 2018

FUEL TANK ASM.

FUEL TANK ASM.

for SPORTSMAN 570 EPS EU from 2018

HEADLIGHT POD

HEADLIGHT POD

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for SPORTSMAN 570 EPS EU from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 570 EPS EU from 2018

EXHAUST

EXHAUST

for SPORTSMAN 570 EPS EU from 2018

ENGINE, FUEL INJECTOR 2521068 O-RINGS

ENGINE, FUEL INJECTOR 2521068 O-RINGS

for SPORTSMAN 570 EPS EU from 2018

LONG BLOCK

LONG BLOCK

for SPORTSMAN 570 EPS EU from 2018

ENGINE, MOUNTING

ENGINE, MOUNTING

for SPORTSMAN 570 EPS EU from 2018

SUSPENSION, FRONT STRUT

SUSPENSION, FRONT STRUT

for SPORTSMAN 570 EPS EU from 2018

SUSPENSION, TORSION BAR

SUSPENSION, TORSION BAR

for SPORTSMAN 570 EPS EU from 2018

TOOL KIT

TOOL KIT

for SPORTSMAN 570 EPS EU from 2018

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN 570 EPS EU from 2018

WHEELS, REAR TIRE AND BRAKE DISC

WHEELS, REAR TIRE AND BRAKE DISC

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, BULBS

ELECTRICAL, BULBS

for SPORTSMAN 570 EPS EU from 2018

ELECTRICAL, HEADLIGHTS

ELECTRICAL, HEADLIGHTS

for SPORTSMAN 570 EPS EU from 2018

STEERING, HANDLEBAR CONTROLS

STEERING, HANDLEBAR CONTROLS

for SPORTSMAN 570 EPS EU from 2018

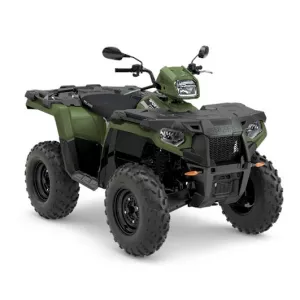

POLARIS SPORTSMAN 570 EPS EU 2018
