1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ
4
Parts Catalog
OIL PUMP AND WATER PUMP
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
PISTON CYLINDER
OIL PUMP AND WATER PUMP
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
9
9
10
10
10
11
12
13
14
-
OIL PUMP ATV KIT
2203012
$356,99 Unit Price incl. VAT
1
ASM-GEROTOR 8.5MM
1202588
1204577
$120,74 Unit Price incl. VAT
2
HOUSING-OIL PUMP 8.5 VLM
5135094
2203012
$356,99 Unit Price incl. VAT
3
BALL BEARING; 15 X 35 X 11
3514561
$16,79 Unit Price incl. VAT
4
RING-RETAINING 1.281X.130
7710531
$9,44 Unit Price incl. VAT
5
OIL AND WATER PUMP SHAFT
5135650
$141,74 Unit Price incl. VAT
6
SCR-M6X1.0X70MM SOC/CAP-Y/D
7517807
$9,44 Unit Price incl. VAT
7
DOUBLE BEAD GASKET COVER
5812936
$68,24 Unit Price incl. VAT
8
WATER PUMP IMPELLER
5433684
$57,74 Unit Price incl. VAT
9
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
10
HEX NUT; NYLOK
7546804
$2,09 Unit Price incl. VAT
11
WATERPUMP FACE SEAL; 15 X 36/ 40 X 20
3610075
$131,24 Unit Price incl. VAT
12
COVER SEAL; WATERPUMP
5812571
$14,69 Unit Price incl. VAT
13
COVER-WATERPUMP DIE CAST
5631882
9999999
Not Available
14
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT

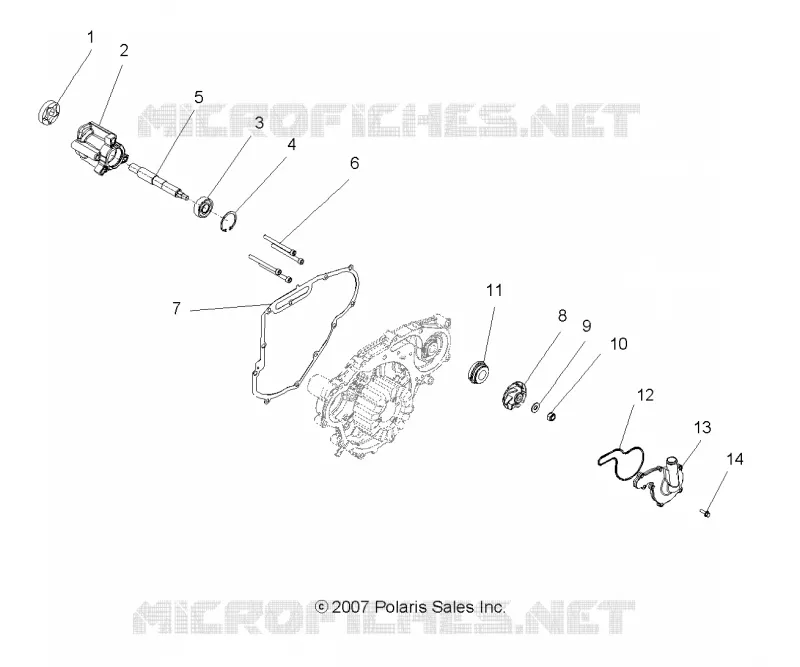

Find the detailed OIL PUMP AND WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
