1
Engine displacement
autre
2
Year
1998
3
Trim
EURO WIDETRAK LX - E982065
4
Parts Catalog
CONSOLE WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388A014)
5
Parts Diagram
Parts Catalog
DECALS WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388A013)
by
FRONT TORQUE ARM WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388B006)
CONSOLE WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388A014)
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
15
15
16
17
18
19
20
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
15
15
16
17
18
19
20
1
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
2
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
3
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
4
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
5
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
6
BRKT ROPE GUIDE BLK.
5222682067
Not Available
7
CONSOLE BLK(W#TRAK)
5222680067
Not Available
8
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
9
CHOKE CABLE
7080290
$194,24 Unit Price incl. VAT
10
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
11
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
12
DECAL CONSOLE [No Longer Available]
7072973
Not Available
13
RECTIFIER LR-4
4060104
9999999
Not Available
14
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
15
HARNESS MAIN WIRE
2460538
9999999
Not Available
15
HARNESS MAIN WIRE(EUR:2460538)
2460547
9999999
Not Available
16
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
17
SPACERREGULATOR
5211573
9999999
Not Available
18
SCREW
7512031
9999999
Not Available
19
CAP W/KEY
5410611
9990000
Not Available
20
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT

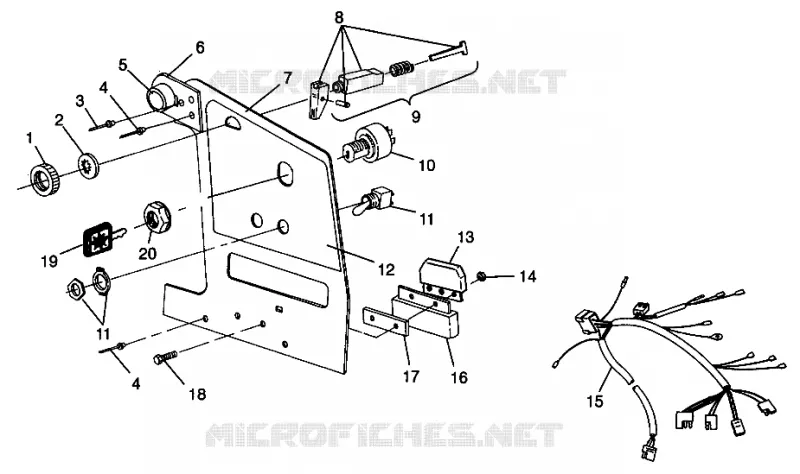

Find the detailed CONSOLE WIDETRAK LX 0982065 AND EUROPEAN WIDETRAK LX E982065 (4943884388A014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
