1
Engine displacement
autre
2
Year
1997
3
Trim
ULTRA SP - 0970678
4
Parts Catalog
FRONT TORQUE ARM ULTRA SP 0970678 (4938093809B011)
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION) ULTRA SP 0970678 (4938093809B010)
by
REAR TORQUE ARM ULTRA SP 0970678 (4938093809B012)
FRONT TORQUE ARM ULTRA SP 0970678 (4938093809B011)
1
2
3
4
5
6
6
6
7
7
7
8
9
10
11
12
13
14
14
14
15
15
16
17
18
19
19
20
21
22
23
23
24
25
25
26
27
27
28
29
30
1
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
2
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
4
SHAFT
5131450
9999999
Not Available
5
ARM F.TORQUE X-10
1541140067
Not Available
6
WASHER
7555716
$3,14 Unit Price incl. VAT
7
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
EYE BOLT
7010050
9999999
Not Available
9
RETAINER SPRING
5241276067
Not Available
10
SPRING SHIELD
5430671
9999999
Not Available
11
SHOCK F.TRK X-10
7041590
9999999
Not Available
12
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
13
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
14
NUT LOCK
7542403
9999999
Not Available
15
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
16
SPACER
5333028
9999999
Not Available
17
PIVOT TUBE BUSHING
5020561
9999999
Not Available
18
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
19
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
20
ARM SHOCK
1540942067
Not Available
21
BOLT
7515472
$4,19 Unit Price incl. VAT
22
BOLT
7515438
$9,44 Unit Price incl. VAT
23
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
24
SPACER OUTER
5332784
9999999
Not Available
25
BUSHING
7556301
$6,29 Unit Price incl. VAT
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
SCREW
7515415
9999999
Not Available
28
BOLT
7515307
$7,34 Unit Price incl. VAT
29
STRAP LIMITER FRONT
5411045
9999999
Not Available
30
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT

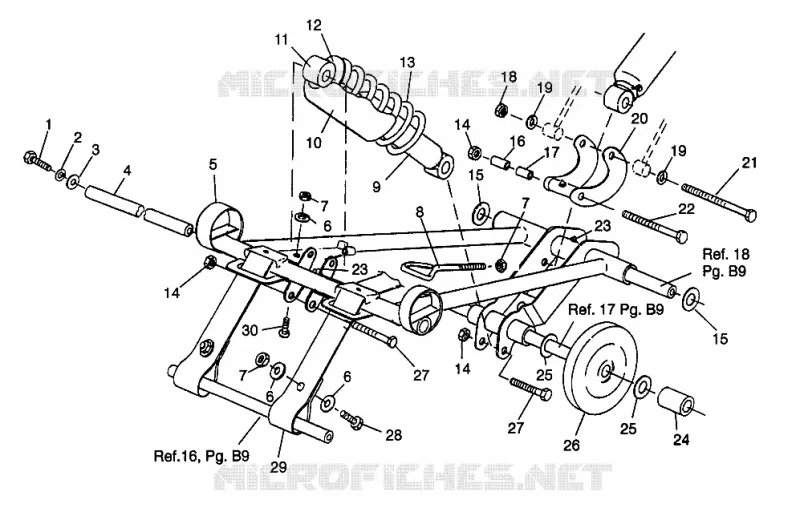

Find the detailed FRONT TORQUE ARM ULTRA SP 0970678 (4938093809B011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
