REAR RACK and SNOWFLAP for POLARIS 750 FS WIDETRAK IQ from 2011

REAR RACK and SNOWFLAP

1

WELD-SIDE RACK LH FL BLK

1017105458

Not Available

2

RIVET

7661637

$2,09 Unit Price incl. VAT

3

WELD-CROSS MEMBER;FR RACK;BLK

1017107458

Not Available

4

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

5

SCR-5/16-18X718 TX-M

7518216

$6,29 Unit Price incl. VAT

6

SCR-1/4-20X1.75 TRTX GR5-B

7518632

$7,34 Unit Price incl. VAT

7

BOLT-CARR 3/8-16X1.00 GR5-Y

7518494

$6,29 Unit Price incl. VAT

8

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

9

WELD-SIDE RACK;RH;FL BLK

1017106458

Not Available

10

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

11

BOLT-CARR 1/4-20 UNC-2AX1.5-Y

7517931

$4,19 Unit Price incl. VAT

12

TAILLIGHT BACKER PLATE WELD; MATTE BLACK

1017108458

Not Available

13

RIVET

7621467

$2,09 Unit Price incl. VAT

14

FLAP-SNOW WIDE

5813274

$230,99 Unit Price incl. VAT

15

WASHER

7556034

$4,19 Unit Price incl. VAT

16

HITCH WELD; BLK.

1011624067

Not Available

17

CLEVIS PIN

7662209

$17,84 Unit Price incl. VAT

18

COTTER PIN

7661401

$1,56 Unit Price incl. VAT

19

SCREW

7512490

$7,34 Unit Price incl. VAT

20

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

21

HITCH WELD;BLK.(U.S.)

1011518067

Not Available

22

SCREW

7512490

$7,34 Unit Price incl. VAT

23

ASM-HITCH; J ;WIDE

1016543

9999999

Not Available

24

PROTECTOR-BED

5413483

9999999

Not Available

25

RIVET(10)

7661846

9999999

Not Available

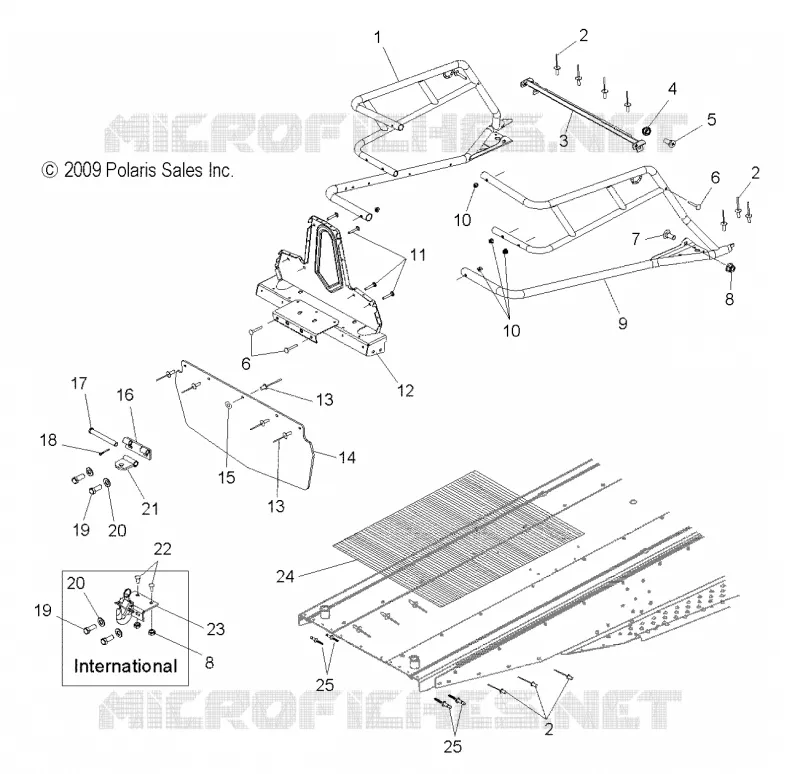

Find the detailed REAR RACK and SNOWFLAP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
