HANDLEBAR CONTROLS for POLARIS 750 FS WIDETRAK IQ from 2011

HANDLEBAR CONTROLS

1

WASHER

7555730

$7,34 Unit Price incl. VAT

2

RETAINING PIN

7661624

$23,09 Unit Price incl. VAT

3

RETAINING RING

7710401

$7,34 Unit Price incl. VAT

4

THROTTLE LEVER; 35.5 MM

5432970

$52,49 Unit Price incl. VAT

4

HEATER LEVER ASSEMBLY; HI/LO; 35.5 MM

2010171

$157,49 Unit Price incl. VAT

5

SWITCH-AUX SHUT-OFF/POWER

4011280

9999999

Not Available

6

GRIP-HANDLEBAR STD BLK

5434715070

Not Available

7

PLUG

5431096

$3,66 Unit Price incl. VAT

8

ADAPTER-BLOCK THROTTLE

5433345

9999999

Not Available

9

SCREW

7511848

$7,34 Unit Price incl. VAT

10

GRIP HEATER; LO/MED/HI

2410812

9999999

Not Available

11

BUTTON SWITCH HI/LO LH CONTROL

5433291

5438874

$52,49 Unit Price incl. VAT

12

ASM-CONTROL LH MFD NON REV

2010333

9999999

Not Available

13

SCREW 1.50

7517566

$7,34 Unit Price incl. VAT

14

SCREW 1.12

7512078

$2,09 Unit Price incl. VAT

15

SCREW .75

7517441

$4,19 Unit Price incl. VAT

16

THROTTLE CABLE

7081154

$120,74 Unit Price incl. VAT

17

WIRE HOLDER

5432261

$47,24 Unit Price incl. VAT

18

WASHER (10)

7555727

9999999

Not Available

19

SCREW SET

7512465

$7,34 Unit Price incl. VAT

20

THROTTLE/BRAKE; BLOCK

5431592

$73,49 Unit Price incl. VAT

21

RETAINING RING

7710503

$7,34 Unit Price incl. VAT

22

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

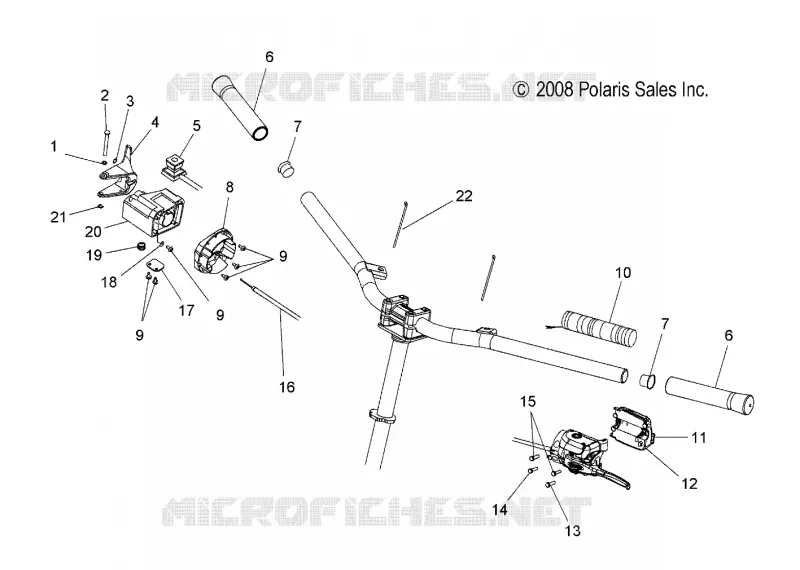

Find the detailed HANDLEBAR CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
