1
Engine displacement
500
2
Year
2005
3
Trim
500 CLASSIC
4
Parts Catalog
CHAINCASE
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
RAIL MOUNTING (M-10)
CHAINCASE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
13
14
15
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
1
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
2
NUT
7542404
$3,14 Unit Price incl. VAT
3
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
4
TIGHTENER ASSEMBLY; CHAIN
1341437
9999999
Not Available
5
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
DIPSTICK ASSEMBLY
1332143
$89,24 Unit Price incl. VAT
8
SPKT 21T 3/4W 15 SPL HV PM
3221097
$73,49 Unit Price incl. VAT
9
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
10
NUT-5/8-18 THIN;NYL INSERT-Y
7547202
$10,49 Unit Price incl. VAT
11
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
12
NEEDLE BEARING
3554508
9999999
Not Available
12
ASM-SPROCKET PINION 18T 3/4W
1341241
9999999
Not Available
13
NEEDLE BEARING
3554508
9999999
Not Available
13
PINION GEAR ASSEMBLY
1341075
9999999
Not Available
14
PIN; DOWEL
7661826
9999999
Not Available
15
KIT SHIFT FORK/SHAFT
2200363
9999999
Not Available
15
SHIFT FORK
5130805
9999999
Not Available
16
CHAINCASE COVER GASKET; 7.92
5812574
$41,99 Unit Price incl. VAT
17
COVER-CHAINCASE REV 7.92 1.265
5133615
9999999
Not Available
18
SCREW
7512242
$4,19 Unit Price incl. VAT
19
OIL SEAL
3610029
9999999
Not Available
20
RING RETAINER
7710415
9999999
Not Available
21
WELD-SHAFT SHIFTBLK
1341388067
Not Available
22
WASHER THRUST
7555877
$14,69 Unit Price incl. VAT
23
HYVO CHAIN 23-149; 74P; 3/4W
3221109
9999999
Not Available
24
SHAFT PINION W/WRENCH FLATS
5131770
9999999
Not Available
25
SCREW; CARRIAGE
7515477
9999999
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
CHAINCASE; 7.92 CD
5134085
9999999
Not Available
28
PLUG
7052115
$10,49 Unit Price incl. VAT
29
CHAIN RETENTION WITH TAB BRACKET
5246421
9999999
Not Available
30
SCREW
7512019
9999999
Not Available
31
WASHER
7555871
9999999
Not Available
32
ASM-SPROCKET 40T REV 3/4W PM
1341227
9999999
Not Available
32
BEARING NEEDLE
3555104
9999999
Not Available
33
COUPLER DRIVE
5130720
9999999
Not Available
34
REVERSE GEAR ASSEMBLY
1341410
9999999
Not Available
35
COMPRESSION SPRING
7041887
9999999
Not Available
36
RETAINER DRIVE COUPLER
5130727
9999999
Not Available
37
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
38
SCREW(10)
7517581
$3,14 Unit Price incl. VAT
39
SCR-1/4-20X2 HX/WH TRI RD-Y
7518052
9999999
Not Available

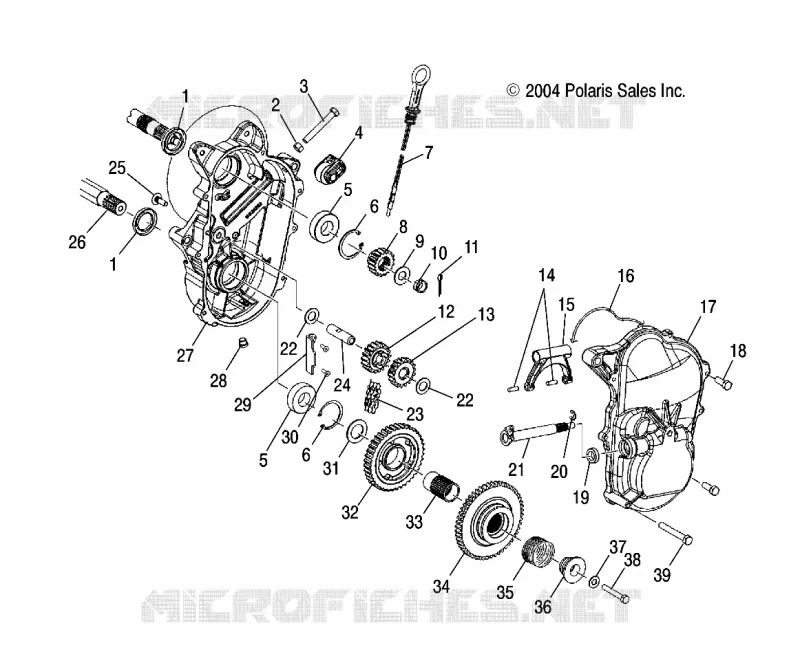

Find the detailed CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
